Fig. 1: Changes in Mean Annual MCS and NON-MCS Precipitation. | npj Climate and Atmospheric Science

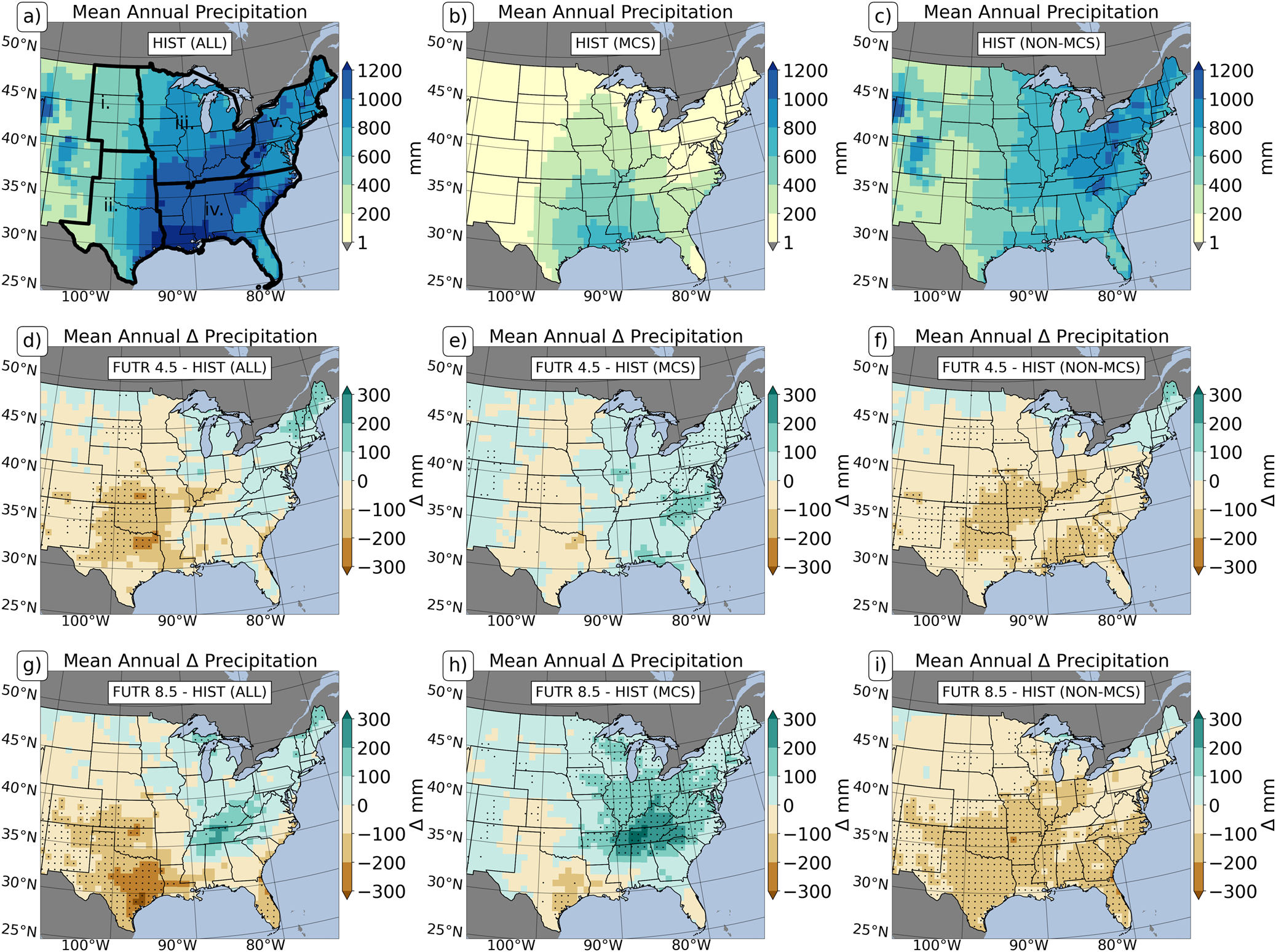

Fig. 1: Changes in Mean Annual MCS and NON-MCS Precipitation.

From: The ratio of mesoscale convective system precipitation to total precipitation increases in future climate change scenarios

Fig. 1

Mean annual precipitation stratified by event type for (a–c) HIST and the change in mean annual precipitation relative to HIST for (d–f) FUTR 4.5 and (g–i) FUTR 8.5. Event types include (a, d, g) ALL events, (b, e, h) MCS events, and (c, f, i) NON-MCS events (i.e., Precipitation from ALL events - Precipitation from MCS events). Significant differences relative to HIST are noted in (d–i) using the Mann–Whitney U test (p < 0.05). The subregions in (a) are the (i) Northern Plains, (ii) Southern Plains, (iii) Midwest, (iv) Southeast, and (v) Northeast. The eastern CONUS (ECONUS) is defined as the combination of regions i–v.
