Fig. 7: Vertical-latitude cross sections of OVTP-induced anomalies in MJJ.

From: To what extent can the ozone valley over the Tibetan Plateau influence the East Asian summer precipitation?

Fig. 7

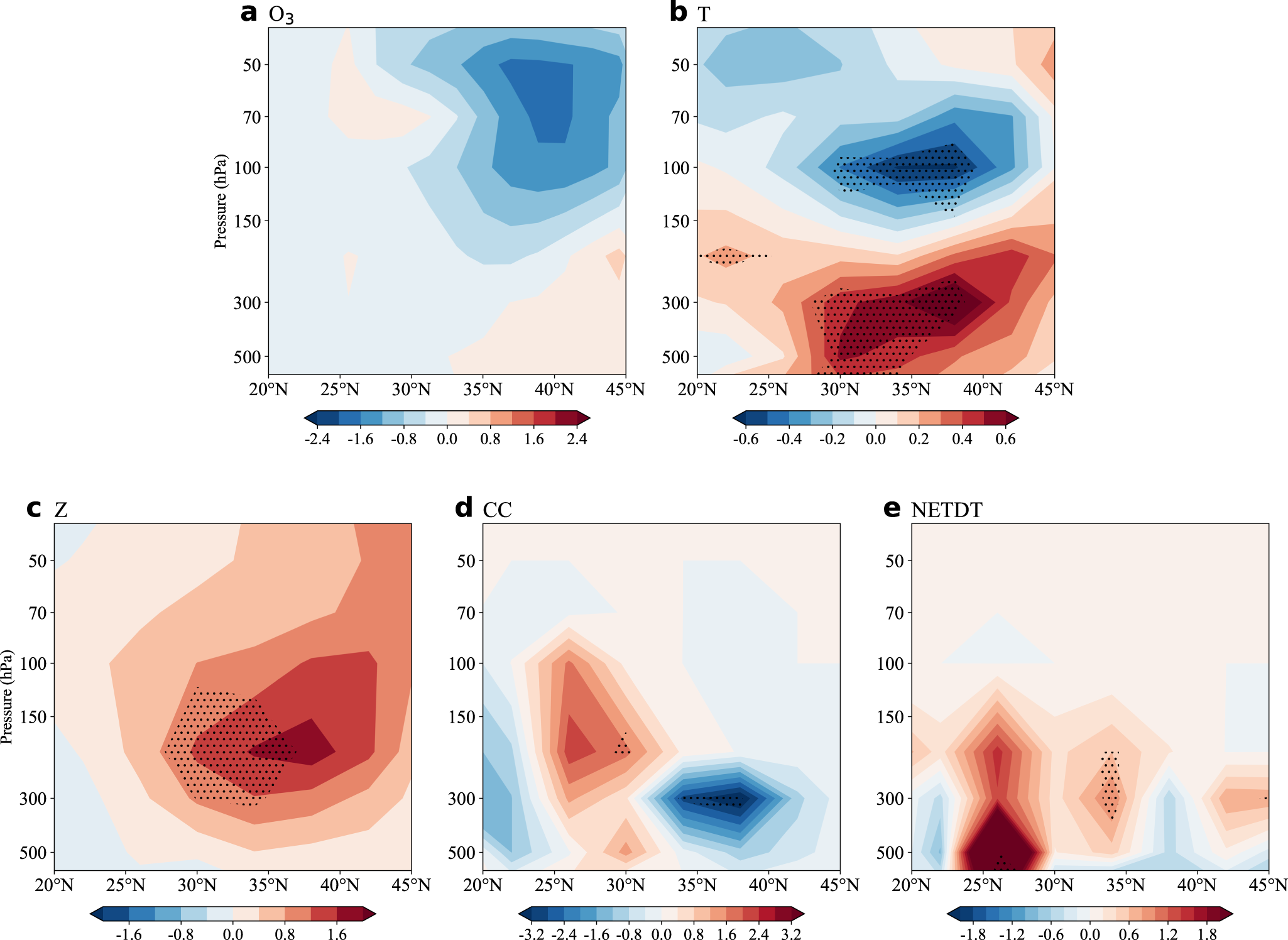

Vertical-latitude cross-section of a ozone mixing ratio (shading, unit: 10−7 mol mol−1), b temperature (shading, unit: K), c geopotential height (shading, unit: gpm), d cloud cover (shading, unit: %) and e net heating rate (shading, unit: 106 K s−1) difference between two experiments (before_remove−after_remove) along 80–105°E. The dotted areas exceed the 90% confidence level.
