Fig. 6: The CMJO episode triggering the SCS summer monsoon onset.

From: Climatological Madden-Julian Oscillation during boreal spring leads to abrupt Australian monsoon retreat and Asian monsoon onsets

Fig. 6

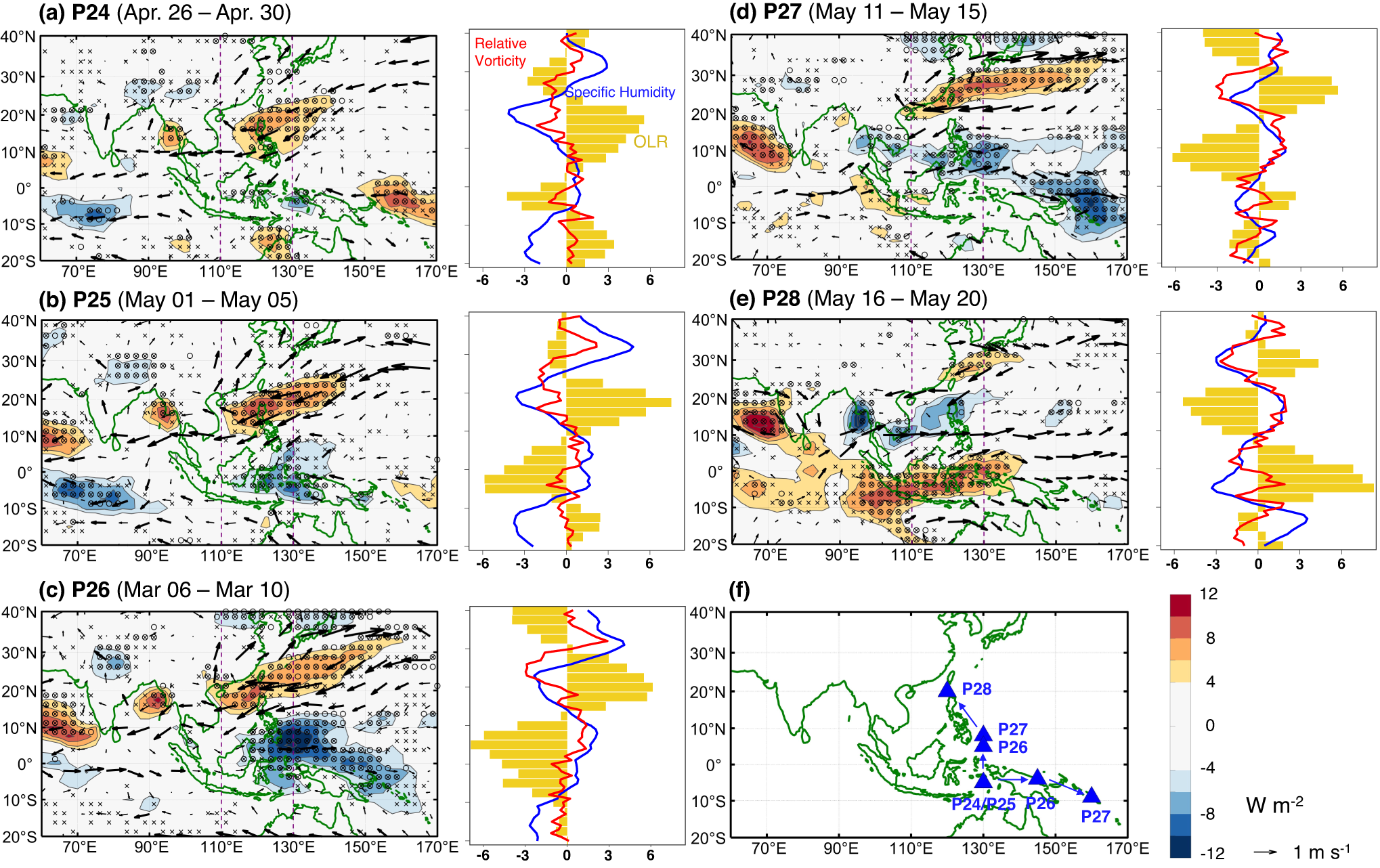

Left panels: The same as in the upper panels in Fig. 5. Right panels: meridional structures of the OLR (yellow bar, units in W m−2), 850-hPa relative vorticity (red line, units in 106*s−1), and 850-hPa specific humidity (blue line, units in 10*g kg−1). All variables are averaged over 110°E-130°E from (a) P24 to (e) P28. f Blue triangles and arrows indicate the centroids and propagation direction of the wet CMJO signal from P24 to P28, respectively.
