Fig. 4: Categorization of the BC-size correlation spectrums.

From: Significant contribution of fractal morphology to aerosol light absorption in polluted environments dominated by black carbon (BC)

Fig. 4

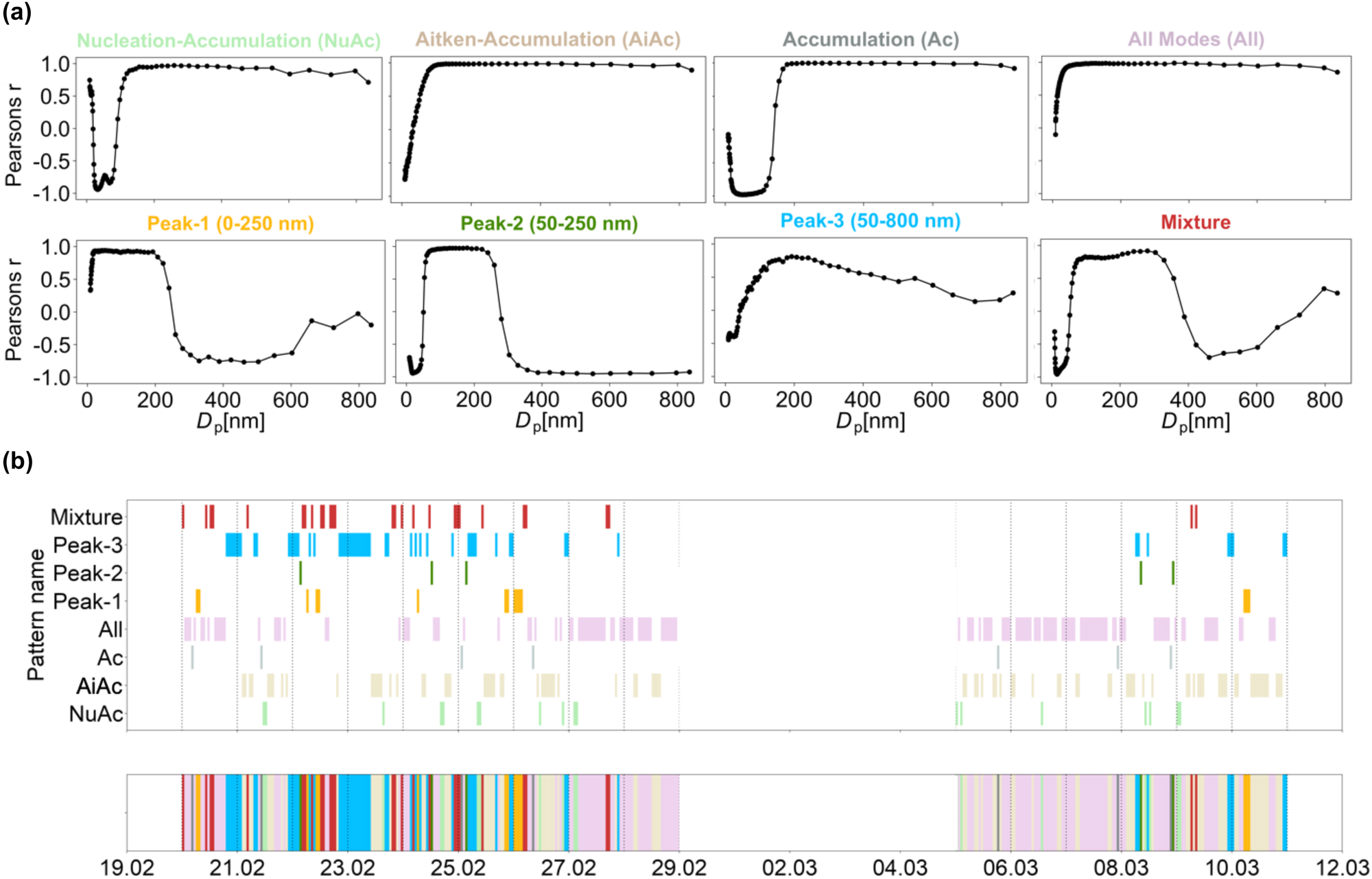

a Eight categories were identified in the BC-size correlation spectrums during the 15-day measurement period. The name of the BC-size correlation spectrum category is indicated at the top of each panel based on the particle modes in which the correlation coefficient was high. As part of the nomenclature of each category, a color is assigned to it, which is relevant to other results. b Time series showing the distribution of the different categories in the BC-size correlation spectrum across the measurement period. The colors of the segments follow the nomenclature given in a.
