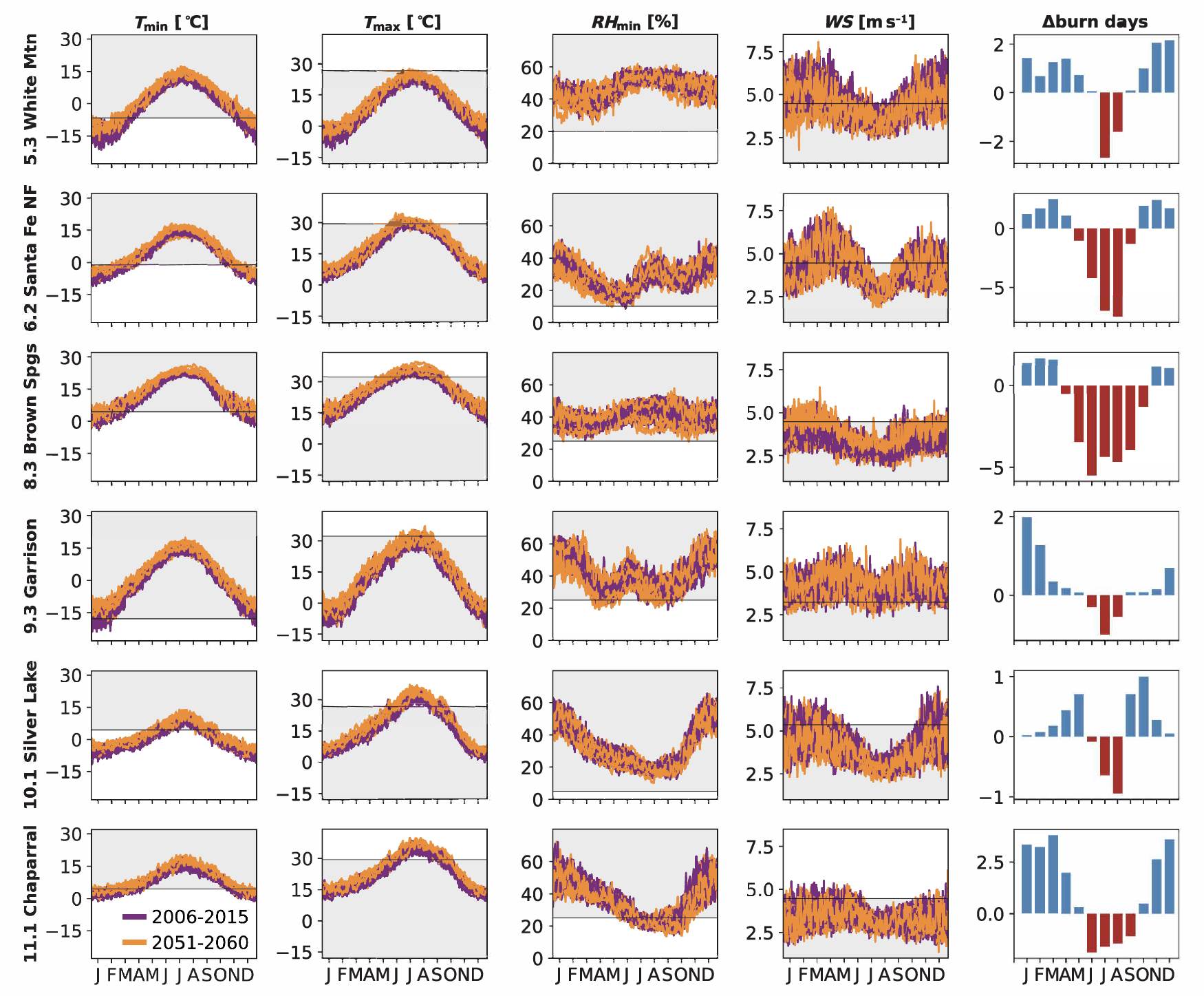

Fig. 4: Annual variability of climate constraints for RCP4.5 CMIP5 simulations.
From: How will future climate change impact prescribed fire across the contiguous United States?
Data from 18 models is shown, with each line representing one model. Columns represent Tmin, Tmax, RHmin, and WS (purple: 2006–2015, orange: 2051–2060), as well as model-average change in burn days between present day and future climate per month. Rows represent six sites in different ecoregions where different climate variables drive change in burn days. Prescription bounds are indicated by gray shading and black lines. Values within the gray shading are in prescription. Values that fall outside the gray shading are not in prescription.
