Fig. 4: Agreement of high consensus CMIP6 mTWS trends with observation-based trends.

From: Observations indicate regionally misleading wetting and drying trends in CMIP6

Fig. 4

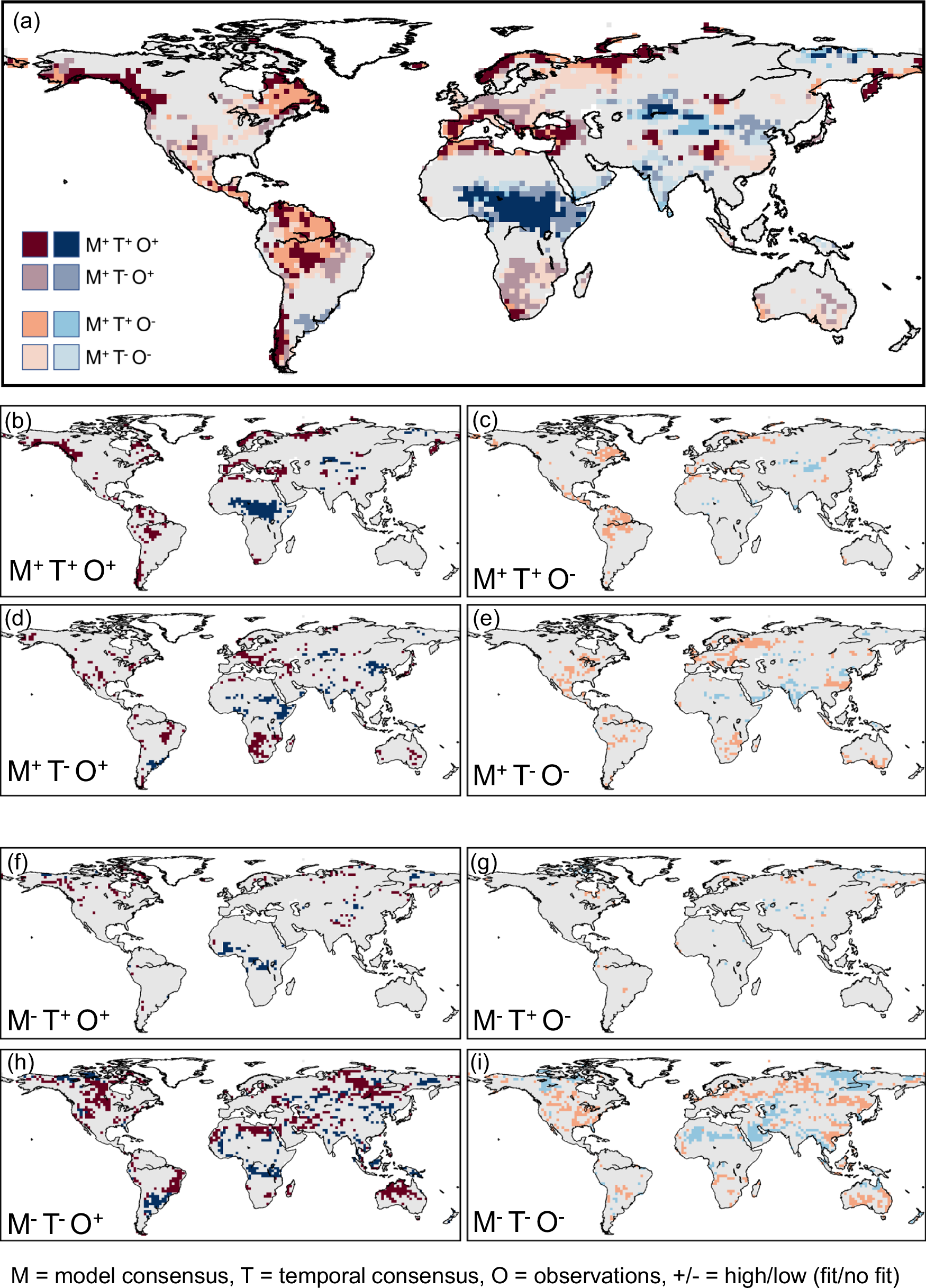

a Regions of high model consensus of 17 CMIP6 models regarding the direction of mTWS trends, distinguished into high/low temporal consensus and fit/no fit to GRACE/DA TWS trends. See text for explanation of legend notation. b–e Different subsets of (a), fulfilling different criteria regarding high/low temporal consensus and fit/no fit to observations. f–i Regions of low model consensus, and different combinations of high/low temporal consensus and fit/no fit to observations.
