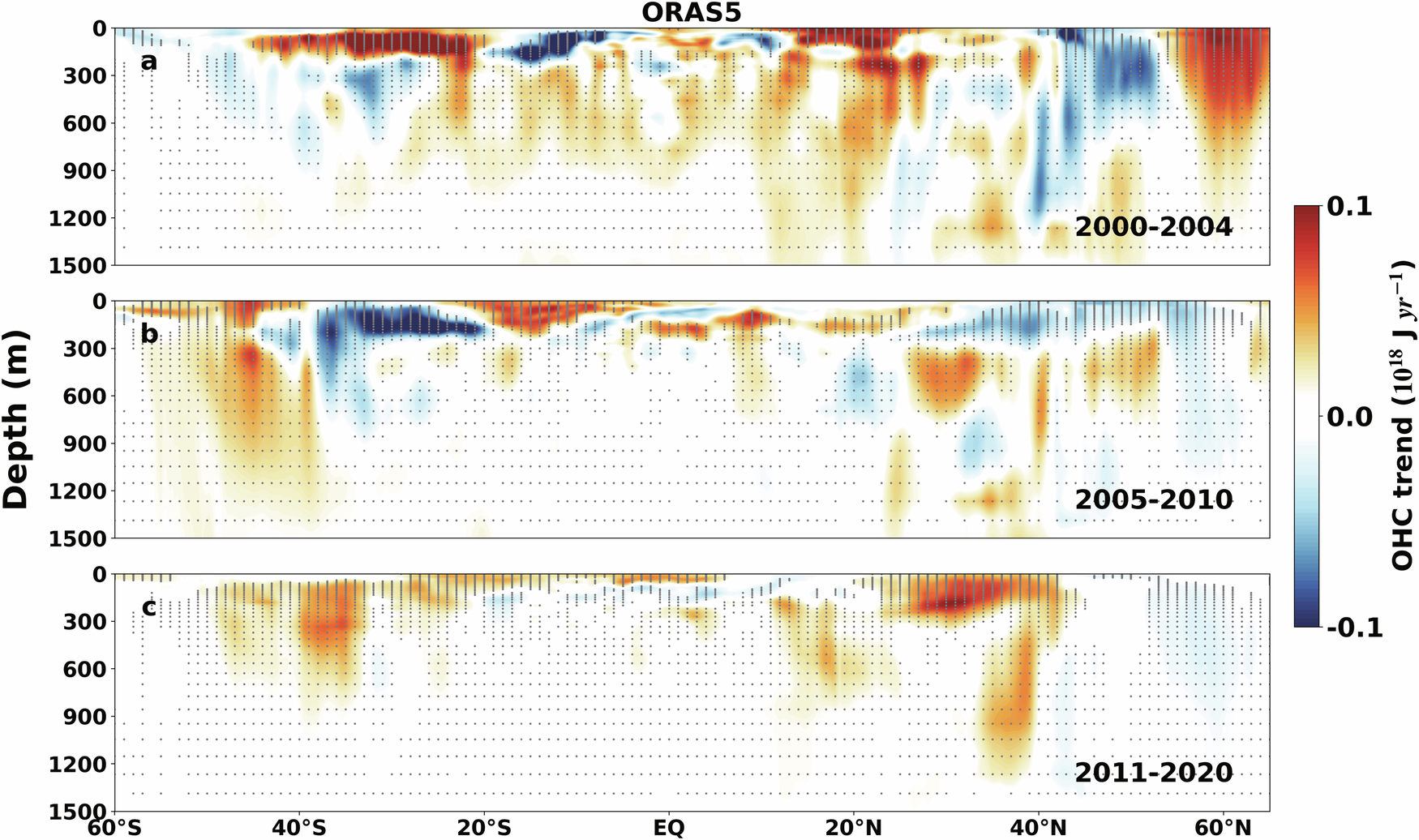

Fig. 10: Linear trend of OHC.
From: Assessment of the global ocean heat content and North Atlantic heat transport over 1993–2020
The linear trend of zonal mean OHC in the Atlantic basin over three time periods a 2000–2004, b 2005–2010 and c 2011–2020. The MOC and OMHT have increasing trends over both 2000–2004 and 2011–2020 but have decreasing trends over 2005–2010. The data arefrom ORAS5.
