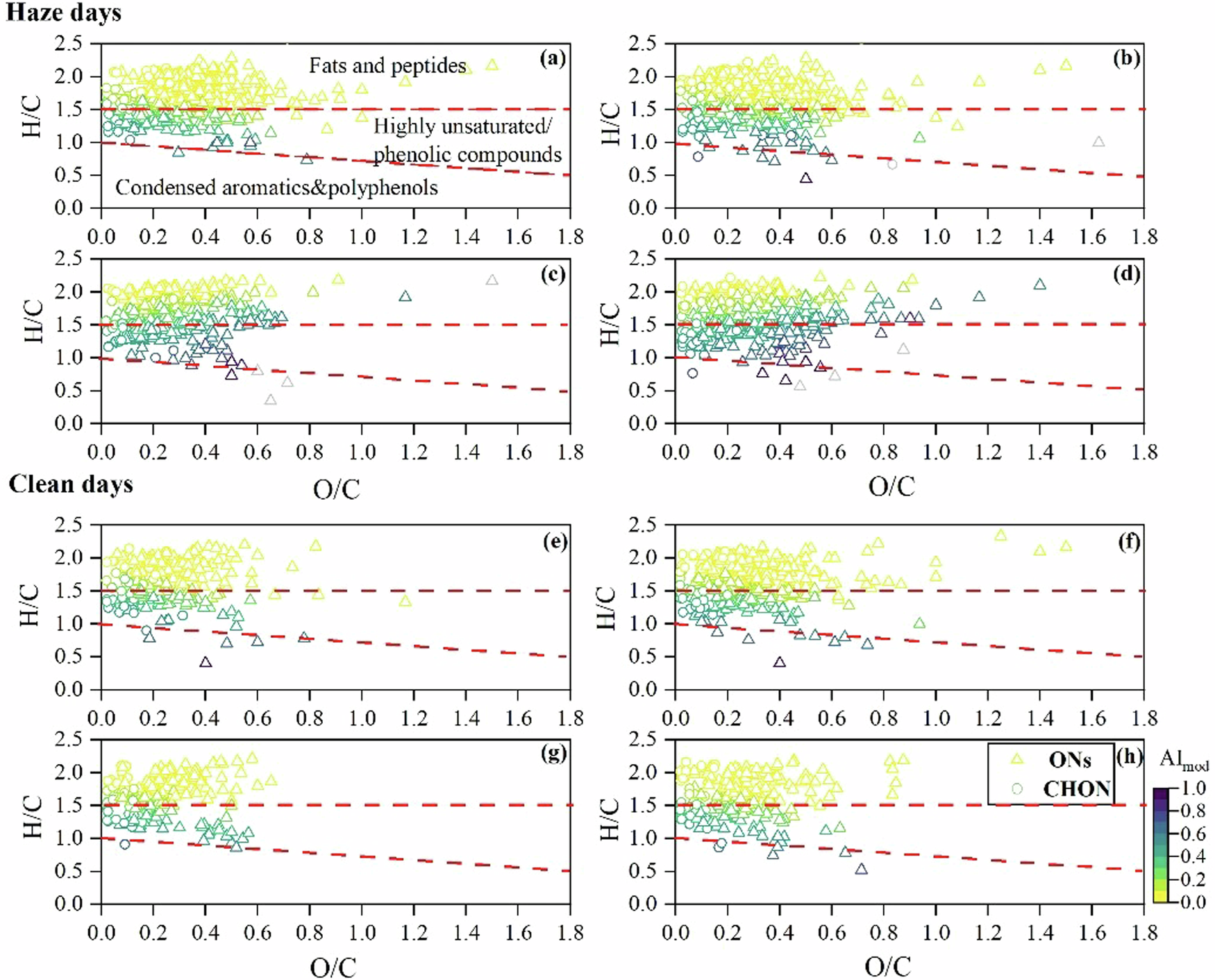

Fig. 4: VK diagram of CHON1 and ONs of N1Ox class in haze and clean days.
(a–d) indicate MEM, M, A, and N periods in haze days respectively. (e–h) indicate those in clean days. The compounds were denoted as CHON1 compound (circle) and ONs (triangle) respectively.
