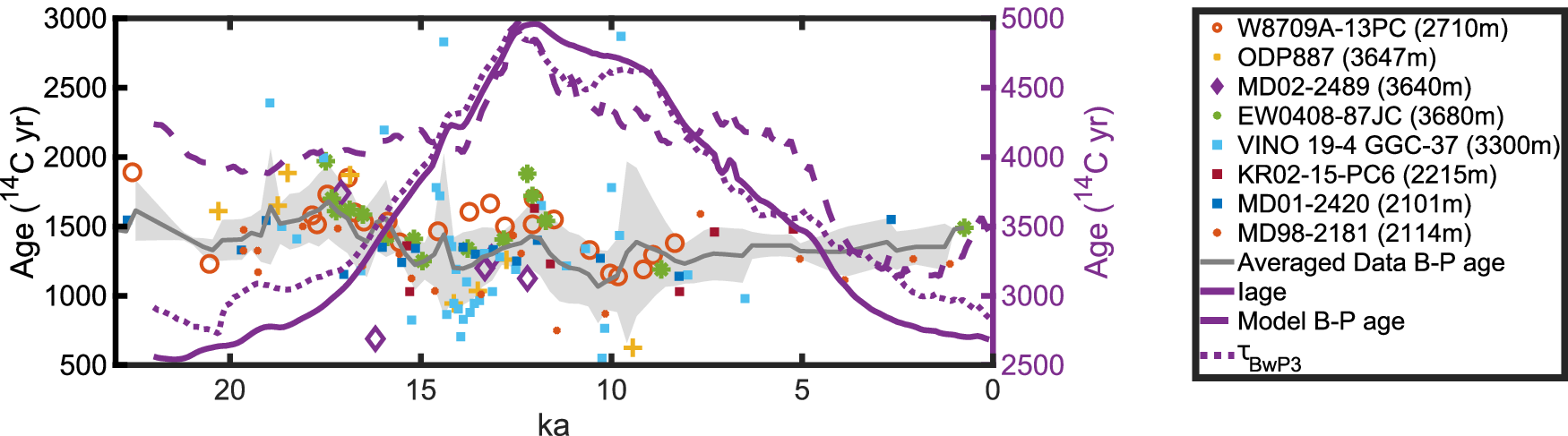

Fig. 5: Sites B-P age Below 2000 m in North Pacific and corresponding model ages.
From: A source-weighted Benthic minus Planktonic radiocarbon method for estimating pure ocean water age
Dots are B-P ages in site data. Red circles for W8709A-13PC31 (42.12°N, 125.75°E, 2710 m), yellow cross markers for ODP88752 (54.62°N, 148.75°E, 3647 m), purple diamonds for MD02-248953 (54.39°N, 148.92°E, 3640 m), green asterisks for EW0408-87JC54 (58.77°N, 144.5°E, 3680 m), blue circles for VINO 19-4 GGC-3732 (50.40°N, 167.70°E, 3300 m), maroon circles for KR02-15-PC655 (40.40°N, 143.50°E, 2215 m), dark blue circles for MD01-242056 (36.07 °N, 141.82 °E, 2101 m), red dots for MD98-218157 (6.30°N 125.80°E, 2114 m). Gray solid line and shading are the mean age of sites above with one standard error, the purple solid line, purple dashed line and purple dotted dashed line are mean model Iage, B-P age and \({{\boldsymbol{\tau }}}_{{\boldsymbol{BwP}}{\bf{3}}}\) at same sites locations, respectively. The unit of Iage is the year in the model, while other ages are 14C yr.
