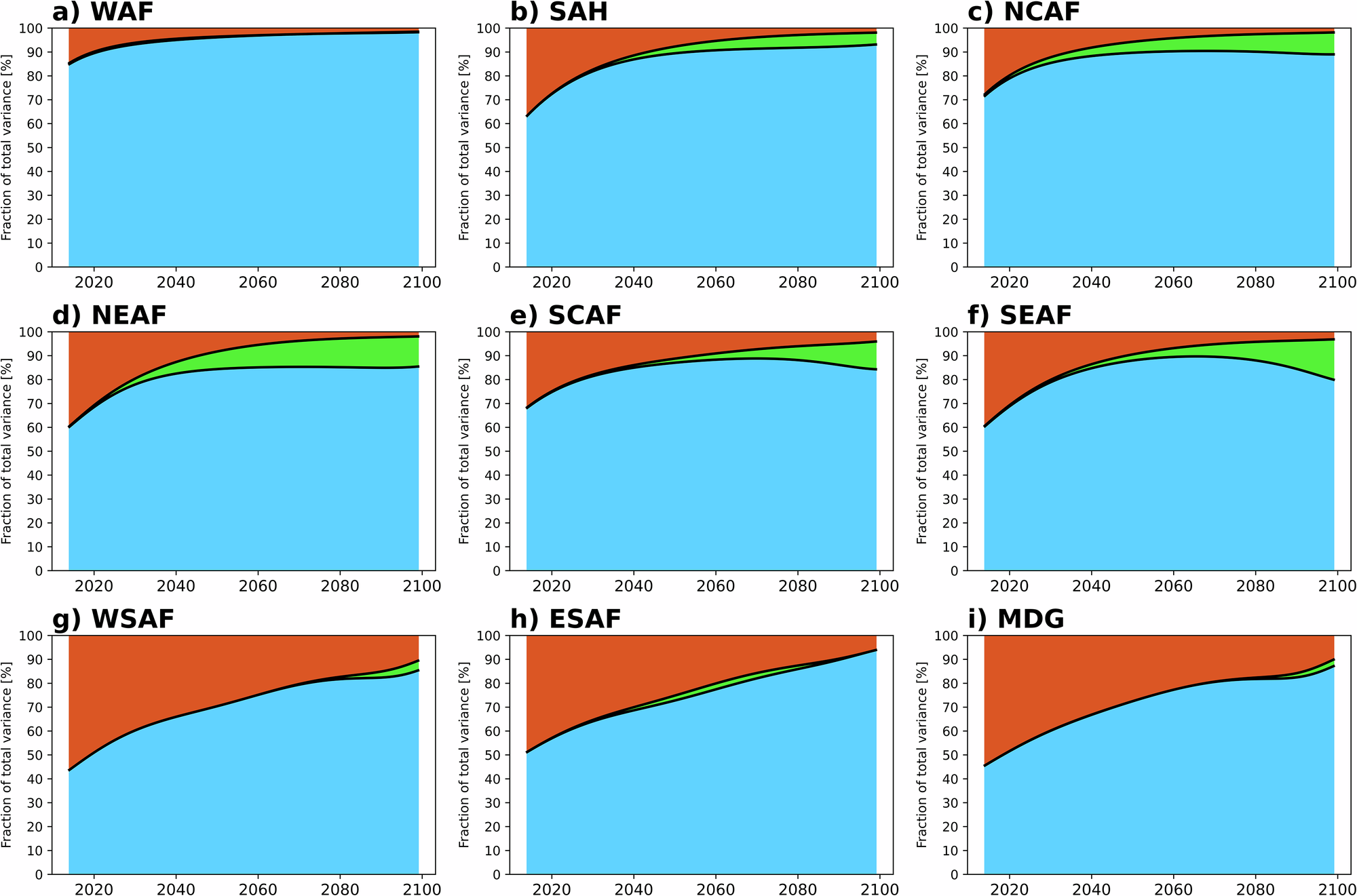

Fig. 3: Evolution of uncertainty components.
From: Understanding drivers and uncertainty in projected African precipitation
The fraction of total variance in mean summer precipitation projections explained by the three components of total uncertainty (unit: %) is shown for (a–i) the nine African regions. Blue, green, and orange shading represent model, scenario, and internal uncertainty, respectively.
