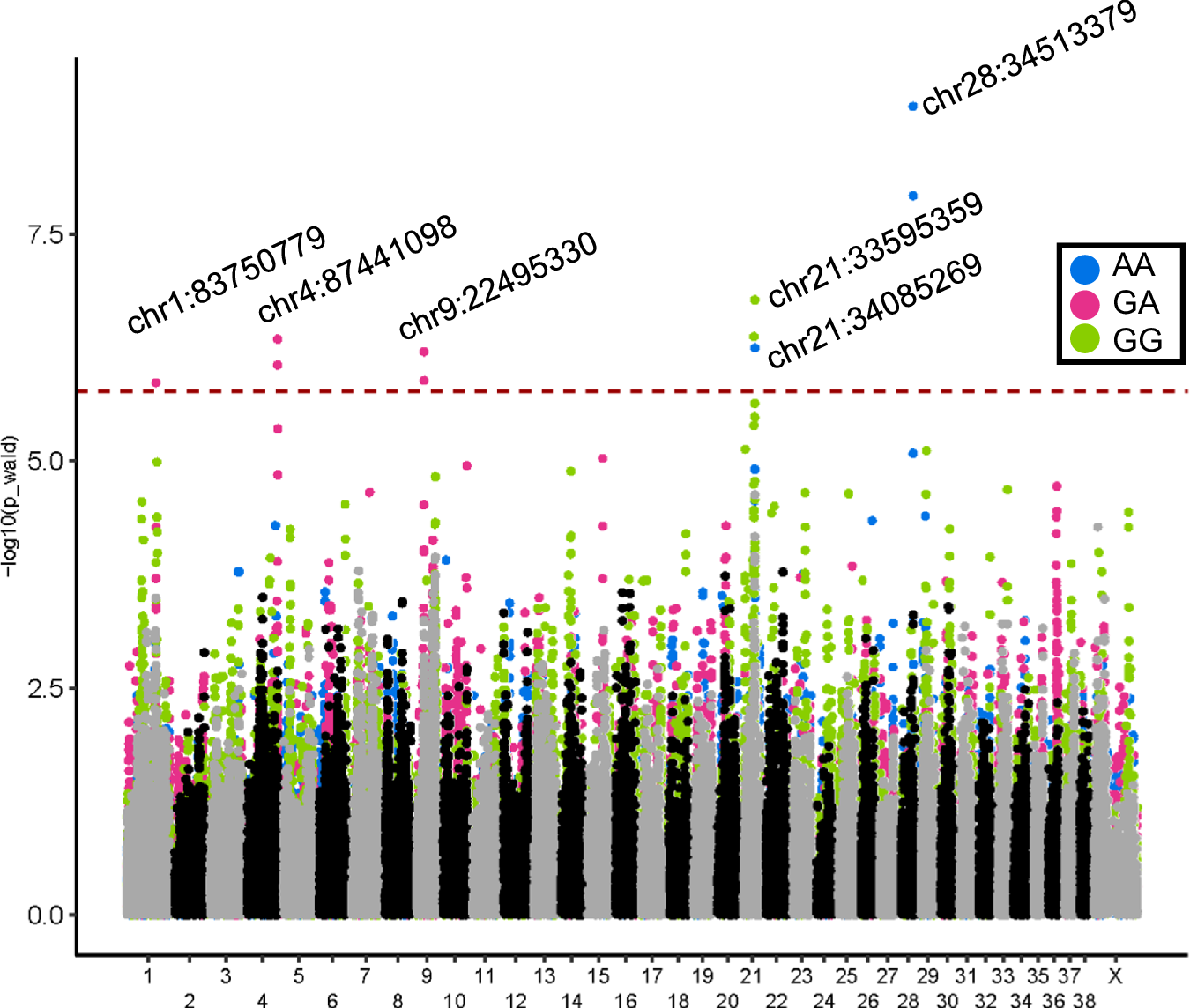

Fig. 4: GWAS results from the Shetland sheepdog cohort divided by NIPAL1 variant genotype.

The results from three independent GWAS are combined for comparison. Each is colored by genotype at NIPAL1^G256D according to the key provided. The significance line is set at 1.7 × 10⁻⁶.
