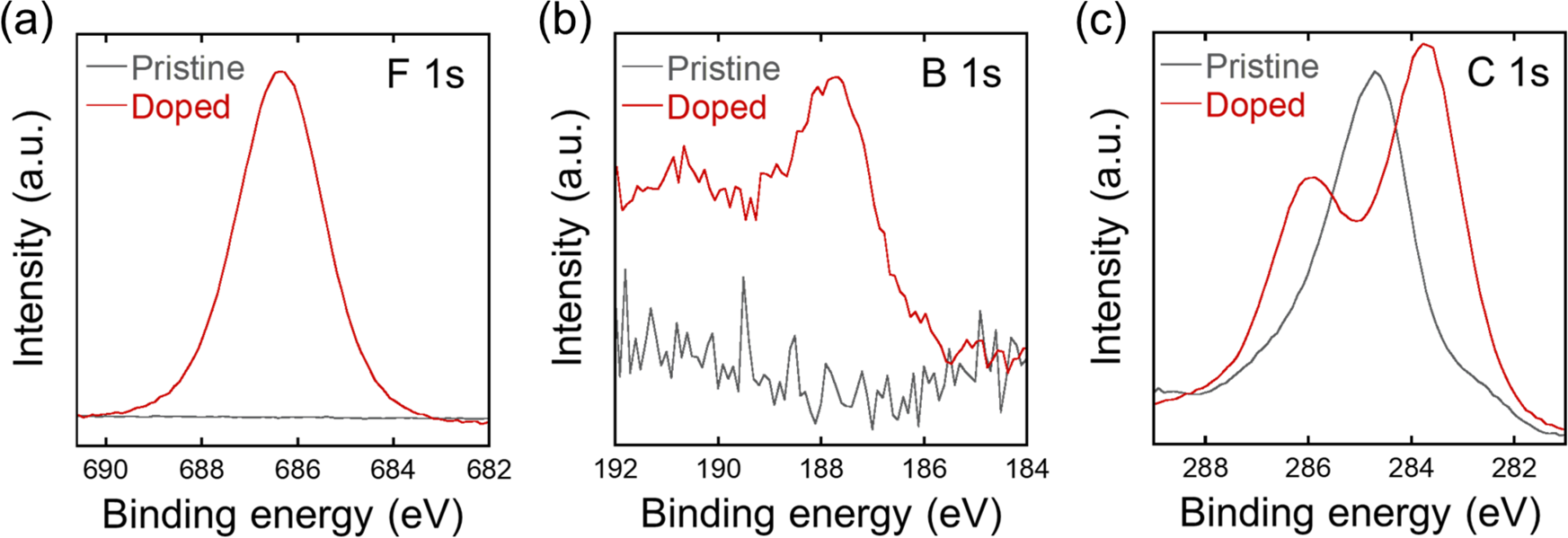

Fig. 3
XPS. a F 1s, b B 1s, and c C 1s spectra of pristine (gray) and doped (red, Sample #6) graphene samples on a glass substrate. All spectra were calibrated on the basis of the XPS Au 4f7/2 peak at 84.0 eV in the spectra of both pristine and doped graphene samples
