Fig. 6
From: Large-signal model of 2DFETs: compact modeling of terminal charges and intrinsic capacitances

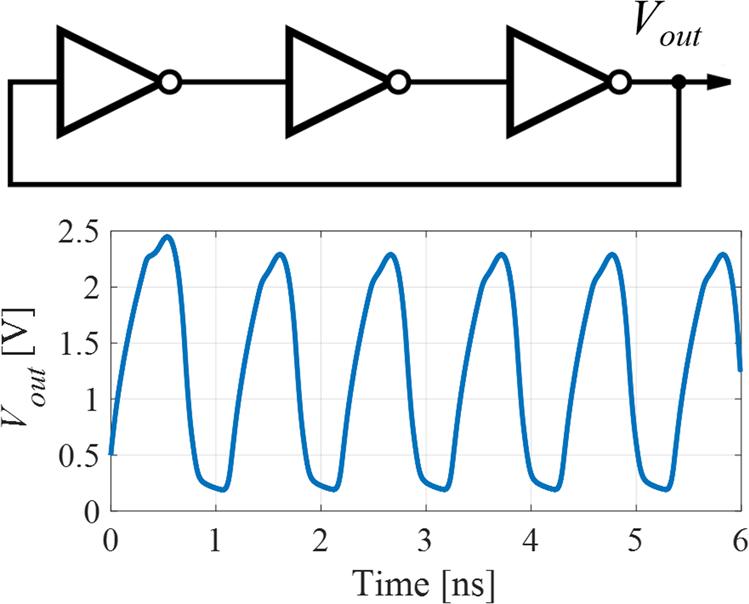

Three-stage ring oscillator switching at a frequency around 1 GHz based on the 2DFETs described in Table 1. The supply bias is 3.5 V.
Fig. 6 | npj 2D Materials and Applications
