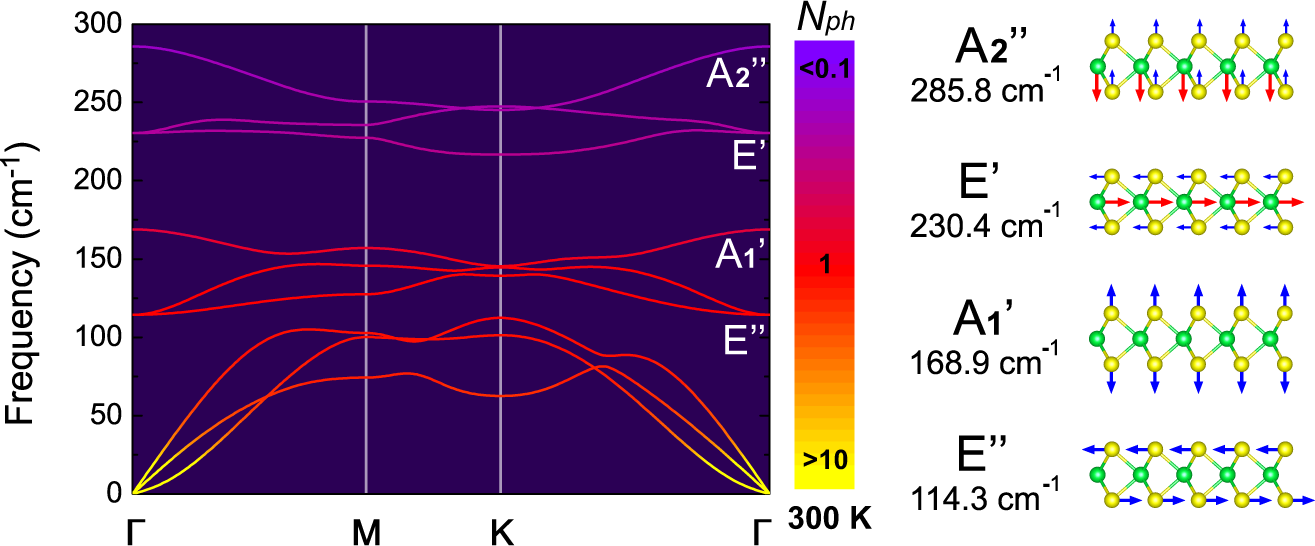

Fig. 1: Lattice dynamics in the ground states.
From: Sub-picosecond photo-induced displacive phase transition in two-dimensional MoTe2
Phonon dispersion of 2H MoTe2 monolayer and vibrational modes for optical phonons at the Γ point. The phonon occupation number is determined from the Bose–Einstein distribution function at 300 K.
