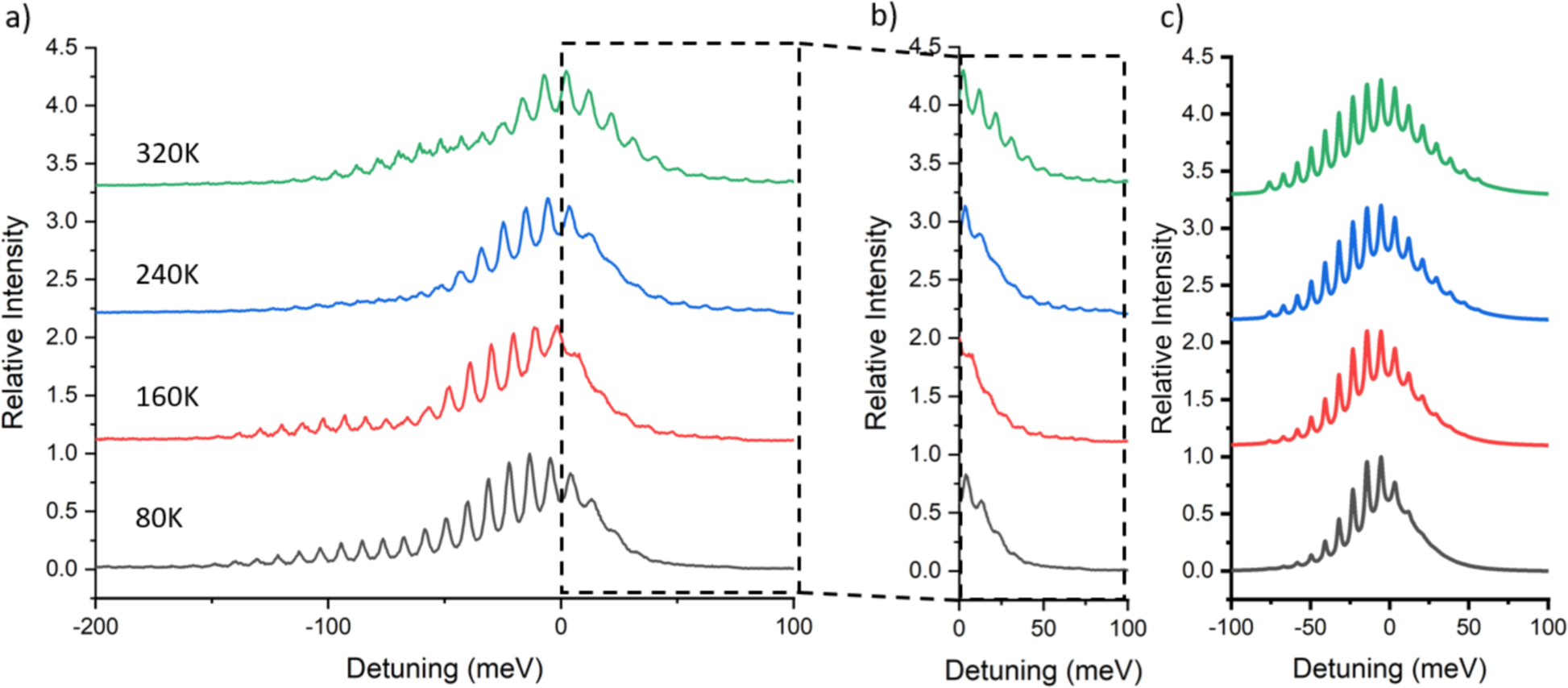

Fig. 4: Temperature-dependent cavity-coupled photoluminescence data and simulations.
From: Exciton–phonon interactions in nanocavity-integrated monolayer transition metal dichalcogenides
a Temperature dependence (80–320 K) of the asymmetric cavity-coupled PL. b Zoomed-in to show the temperature dependence of the asymmetric cavity-coupled PL for cavities blue-detuned with respect to the exciton. c Simulated temperature dependence of cavity-coupled PL without trion and defect emission. All free parameters are held fixed except the measured cryostat temperature (T = 80 K, 160 K, 240 K, 320 K, γ = 48.4 meV, αp = 0.018 ps2, ωb = 6.7 meV, κ = 2.85 meV, g = 4 meV).
