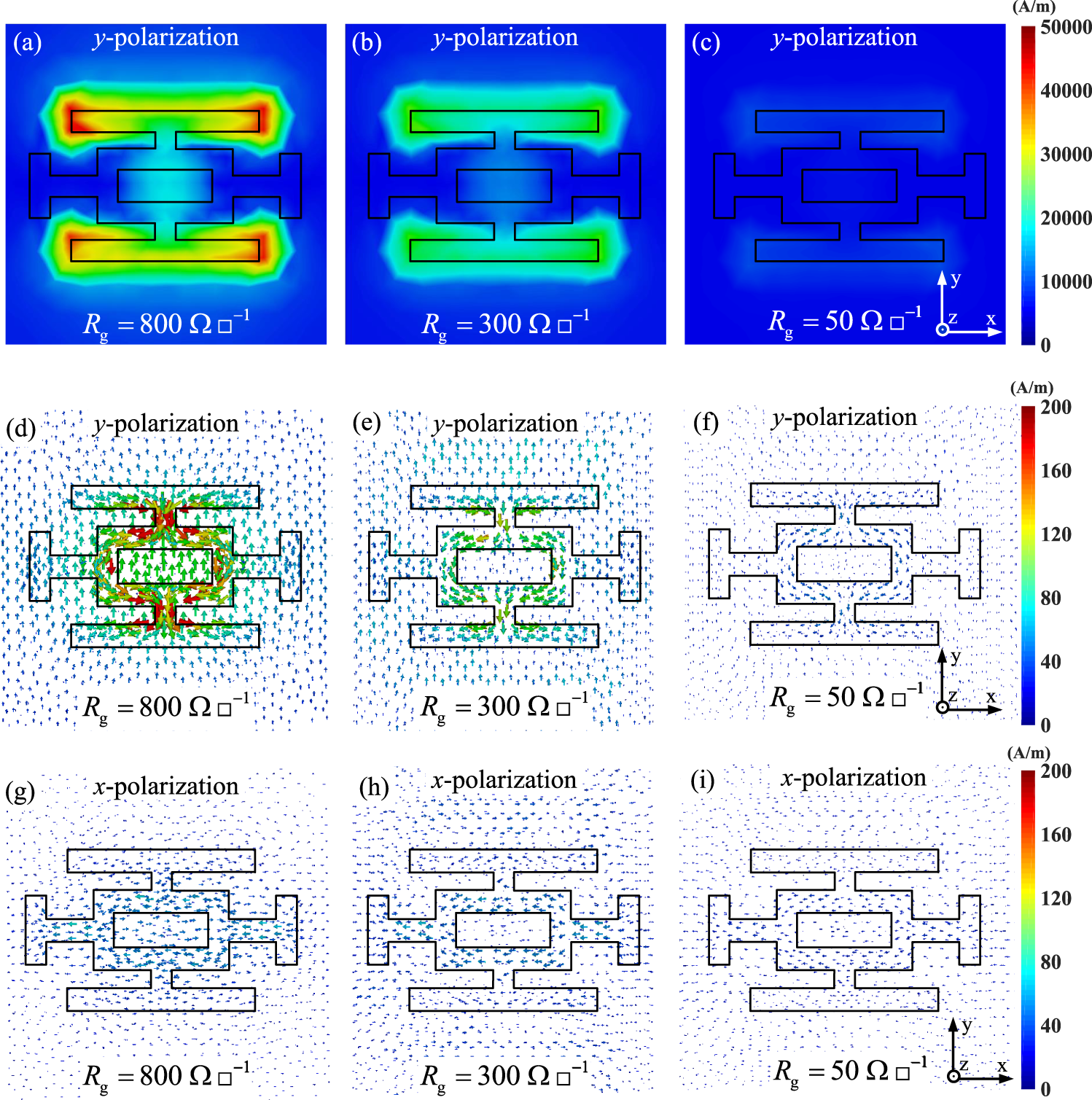

Fig. 5: Electric fields and induced currents in graphene-based meta-device.
From: Dynamic manipulation of microwave polarization based on anisotropic graphene meta-device
Simulated electric fields (a–c) and induced surface-current distributions (d–f) of the designed meta-device under y-polarized incidence with different sheet resistances of 800, 300, and 50 Ω□−1. Induced surface-current distributions under x-polarized incidence with different sheet resistances of g 800 Ω□−1, h 300 Ω□−1, and i 50 Ω□−1.
