Fig. 3: Electrical characteristics of AATs before (w/o) and after (w/ AuCl3) p-doping.
From: Charge transfer mechanism for realization of double negative differential transconductance

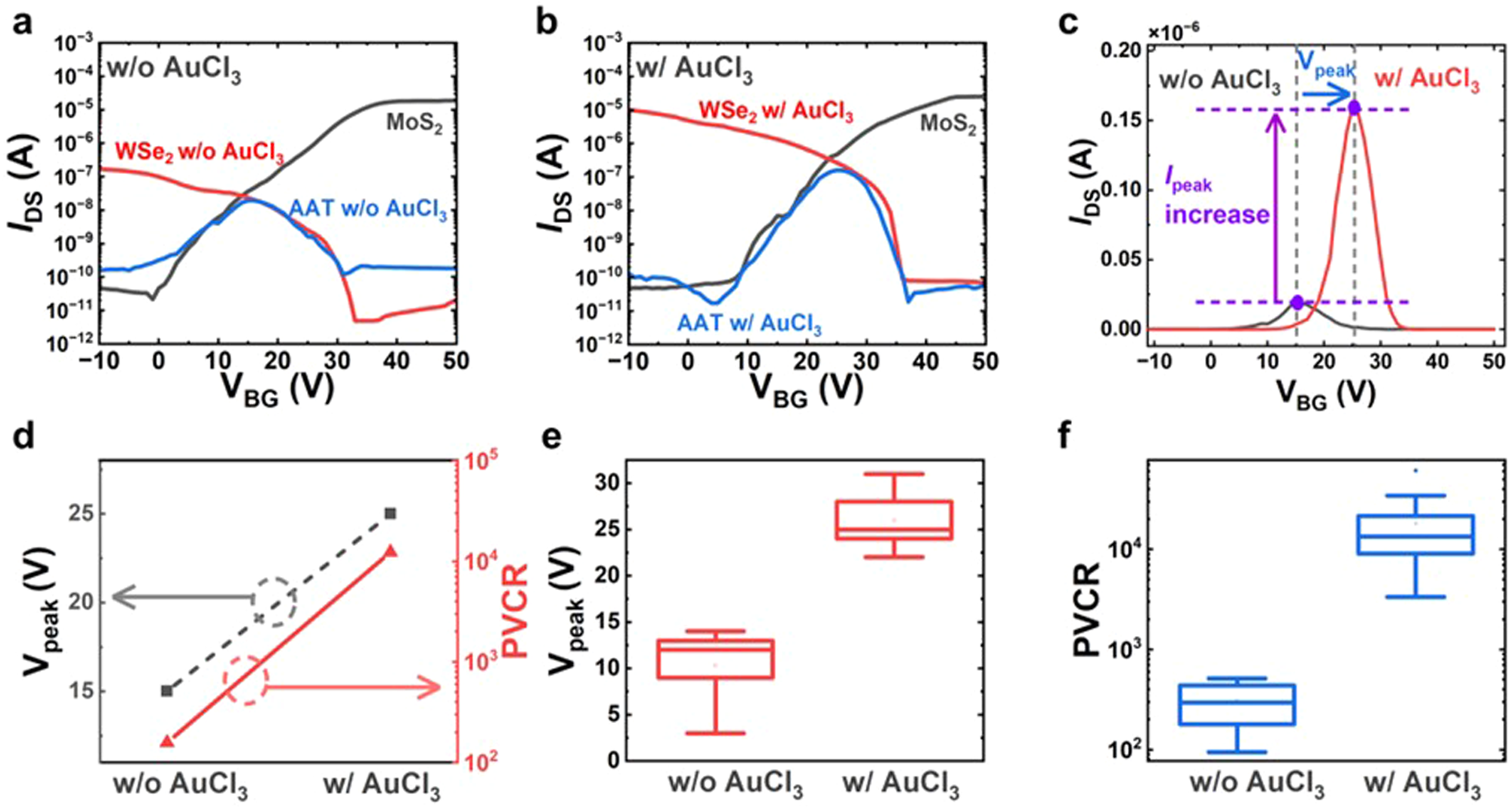

Electrical curves of AATs a w/o and b w/ AuCl3, including the MoS2 and WSe2 channels. c Electrical curves of NDT peak of AATs w/o and w/ AuCl3 at linear scale. d Vpeak value (left y-axis) and PVCR (right y-axis, log scale), corresponding to the AATs w/o and w/ AuCl3. e Box plot of Vpeak, including 14 samples obtained from the AATs w/o and w/ AuCl3 (median values (m) of 12 V and 25 V, standard deviation (σ) of 3.32 V and 2.68 V, standard error (SE) of 0.8 V and 0.7 V, respectively). f Box plot of PVCR, including 13 samples obtained from the AATs w/o and w/ AuCl3 (m of 296 and 1.3 ×104, σ of 144 and 1.5 ×104, SE of 4.3 and 4.5 ×103, respectively).
