Fig. 6: Magnetic structures as a function of temperature and magnetic field.
From: Emergence of polar skyrmions in 2D Janus CrInX3 (X=Se, Te) magnets

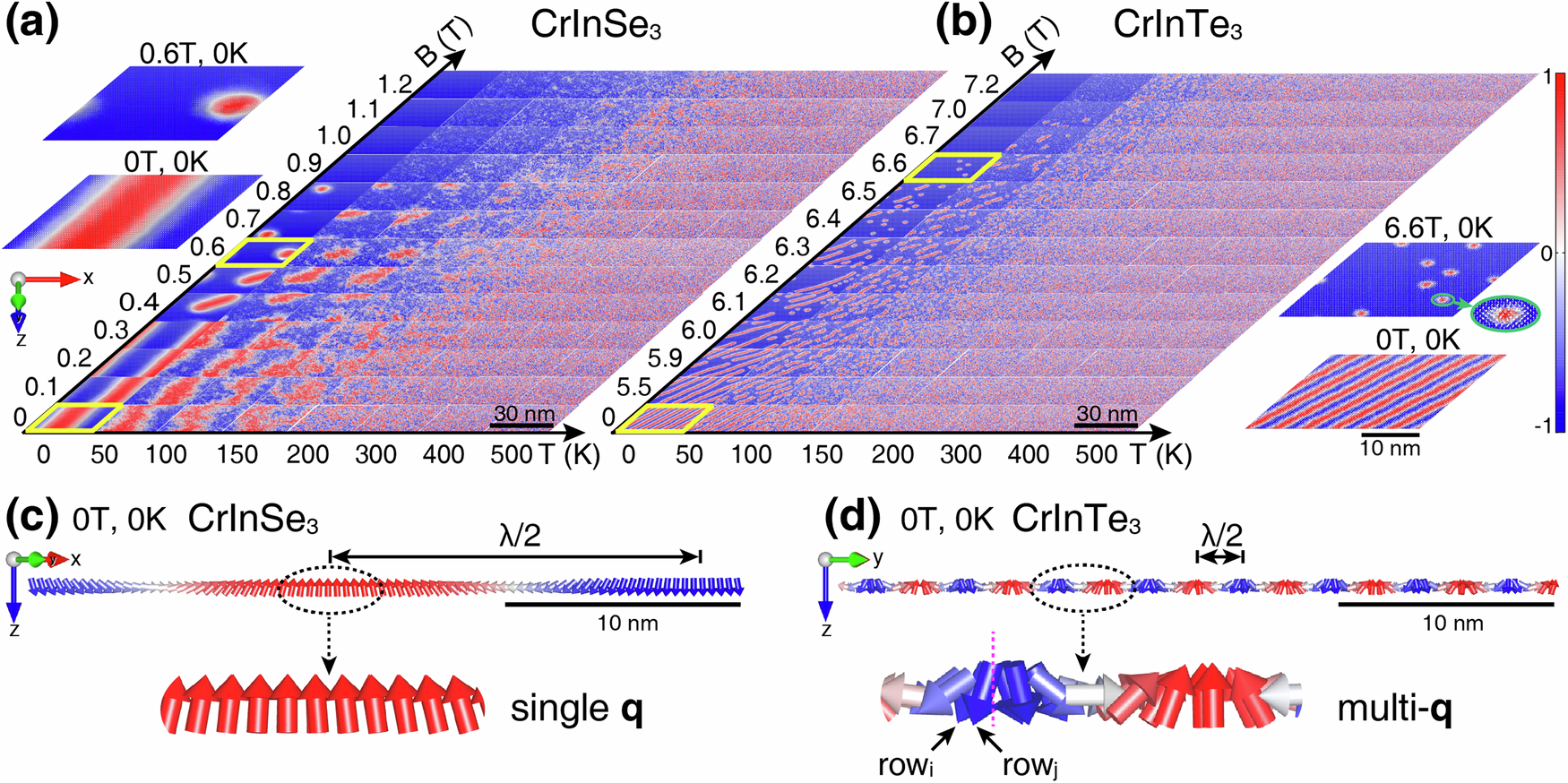

Calculated B-T phase diagrams of a CrInSe3 and b CrInTe3. Two insets are shown in each, representing typical zoomed-up magnetic configurations in phase diagrams (as indicated by yellow parallelograms). Moment orientations are indicated by a heat bar at the right side panel, where blue, white, and red represent the moment that is polarized along +z, in xy-plane, and -z, respectively. c, d Side views of two 0K, 0T magnetic configurations, along with their specific coordinate vectors. Zoomed-in images illustrate the single q spin spiral structure in CrInSe3 and the multi-q spin spiral structure in CrInTe3. Relevant length scales are inserted at the bottom right corners of each panel.
