Fig. 3: EchoNet performance and interpretation for ventricular size and function.

From: Deep learning interpretation of echocardiograms

Fig. 3

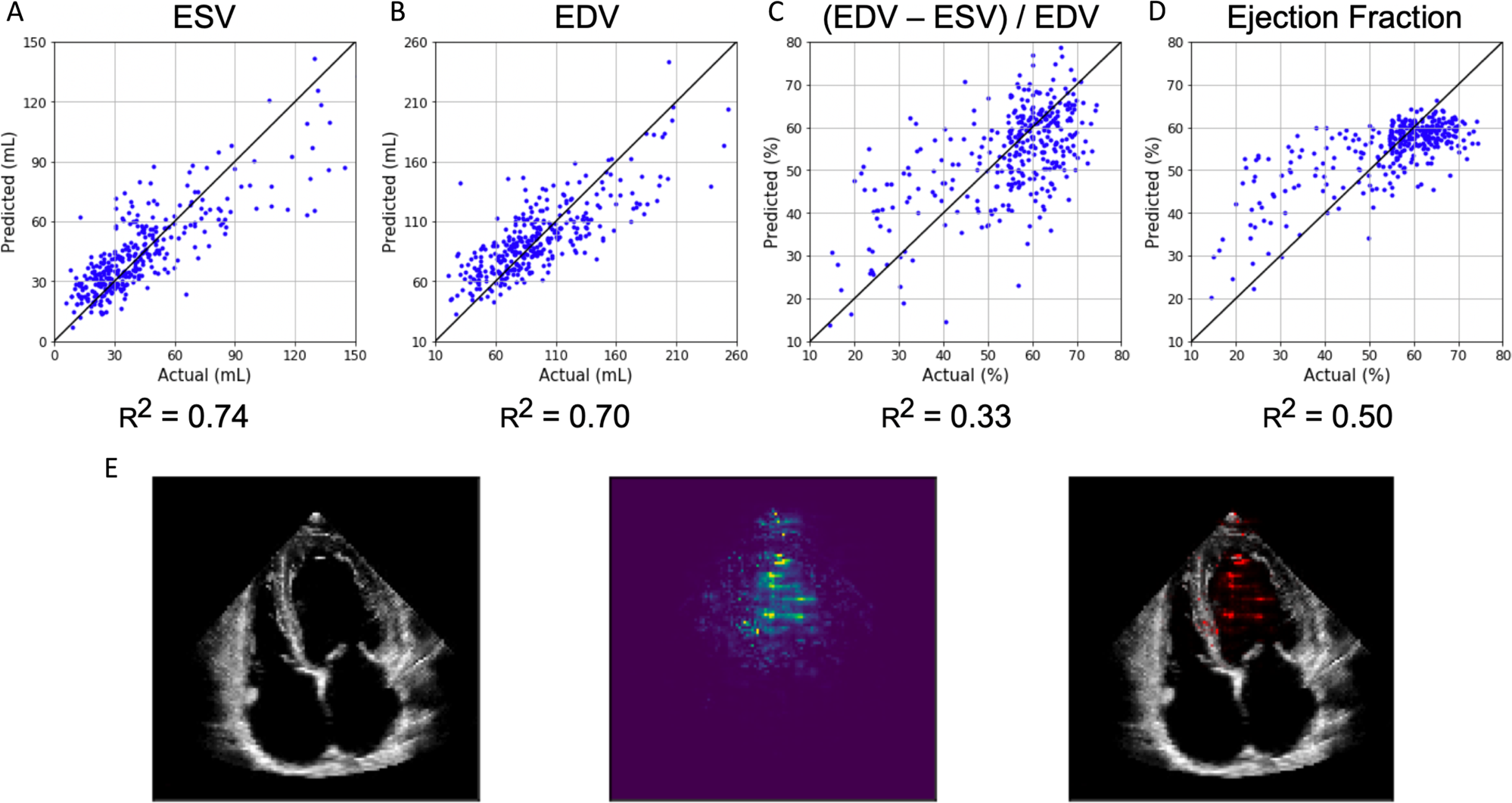

EchoNet performance for a predicted left ventricular end systolic volume, b predicted end diastolic volume, c calculated ejection fraction from predicted ESV and EDV, and d predicted ejection fraction. e Input image, interpretation, and overlap for ejection fraction model.
