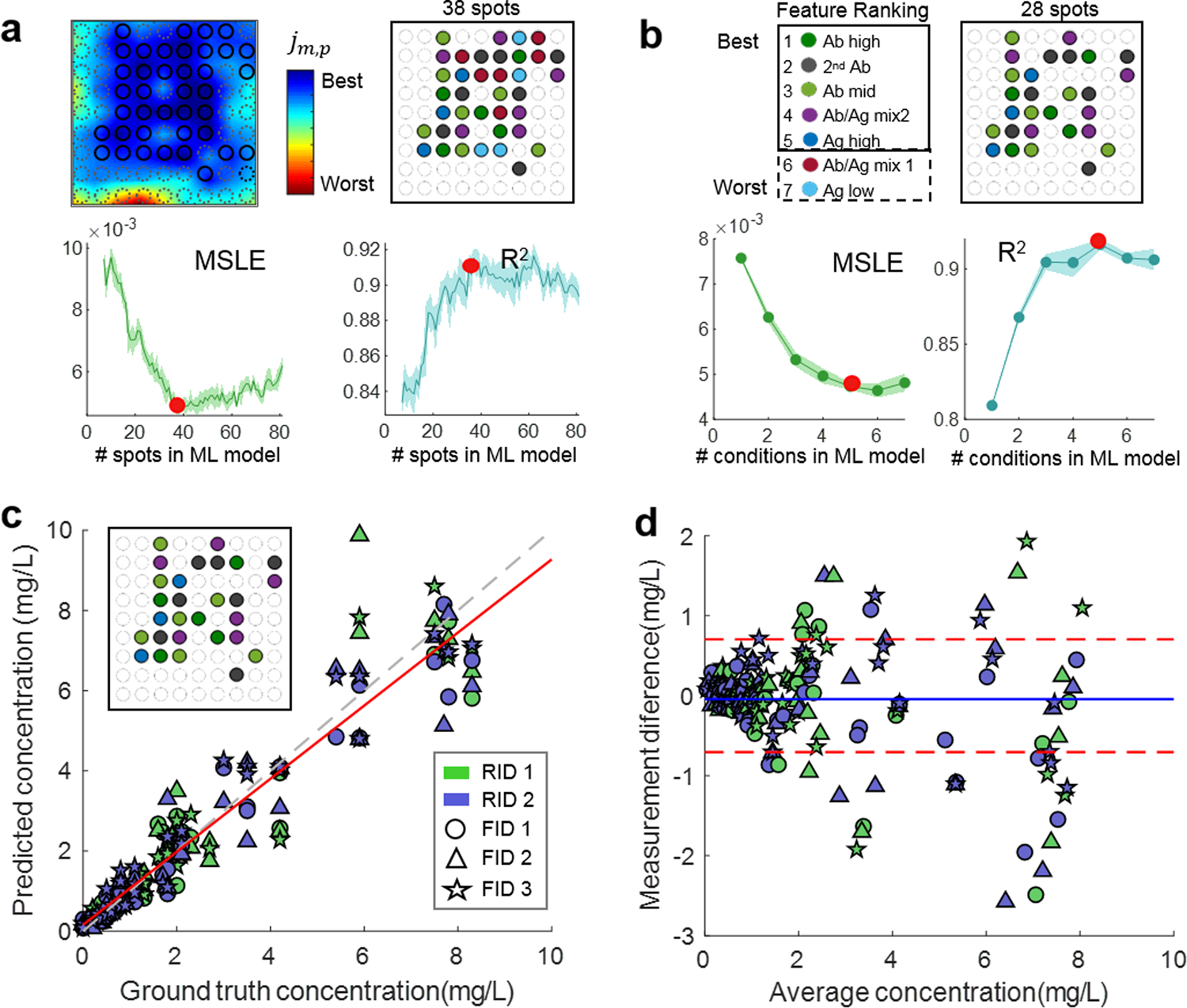

Fig. 2: Cross-validation and feature selection analysis using the training data set of clinical samples (N_train = 209).
