Fig. 2: The four patterns of change in anomaly score (AS) in terms of radiation therapy, according to the type of breast cancer surgery and reconstruction method. | npj Digital Medicine

Fig. 2: The four patterns of change in anomaly score (AS) in terms of radiation therapy, according to the type of breast cancer surgery and reconstruction method.

From: Feasibility of anomaly score detected with deep learning in irradiated breast cancer patients with reconstruction

Fig. 2

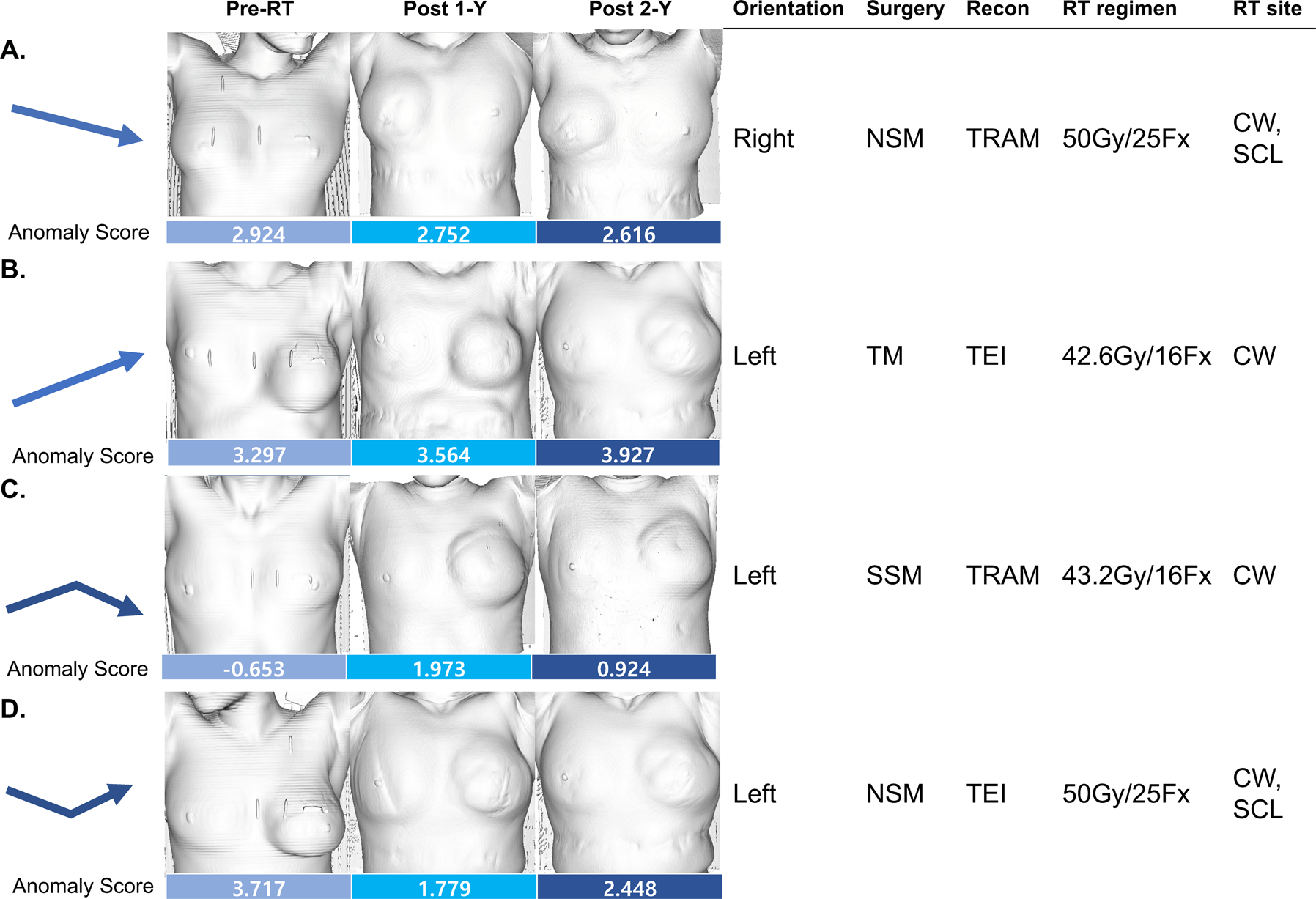

A The decreasing trend of AS in patients who received right NSM with TRAM flap reconstruction. B The increasing trend of AS in patients who underwent left total mastectomy followed by TEI. C The increasing-decreasing trend of AS in patients who received left SSM with TRAM flap reconstruction. D The decreasing-increasing trend of AS in patients who underwent NSM followed by TEI. RT radiation therapy, 1-Y 1 year, 2-Y 2 years, NSM nipple-sparing mastectomy, TEI tissue-expander insertion, TRAM transverse rectus abdominis muscle, Fx fractions, CW chest wall, SCL subclavian lymph node, SSM skin-sparing mastectomy.
