Fig. 4: Data flow diagram.

From: Reducing primary cesarean delivery rate through implementation of a smart intrapartum surveillance system

Fig. 4

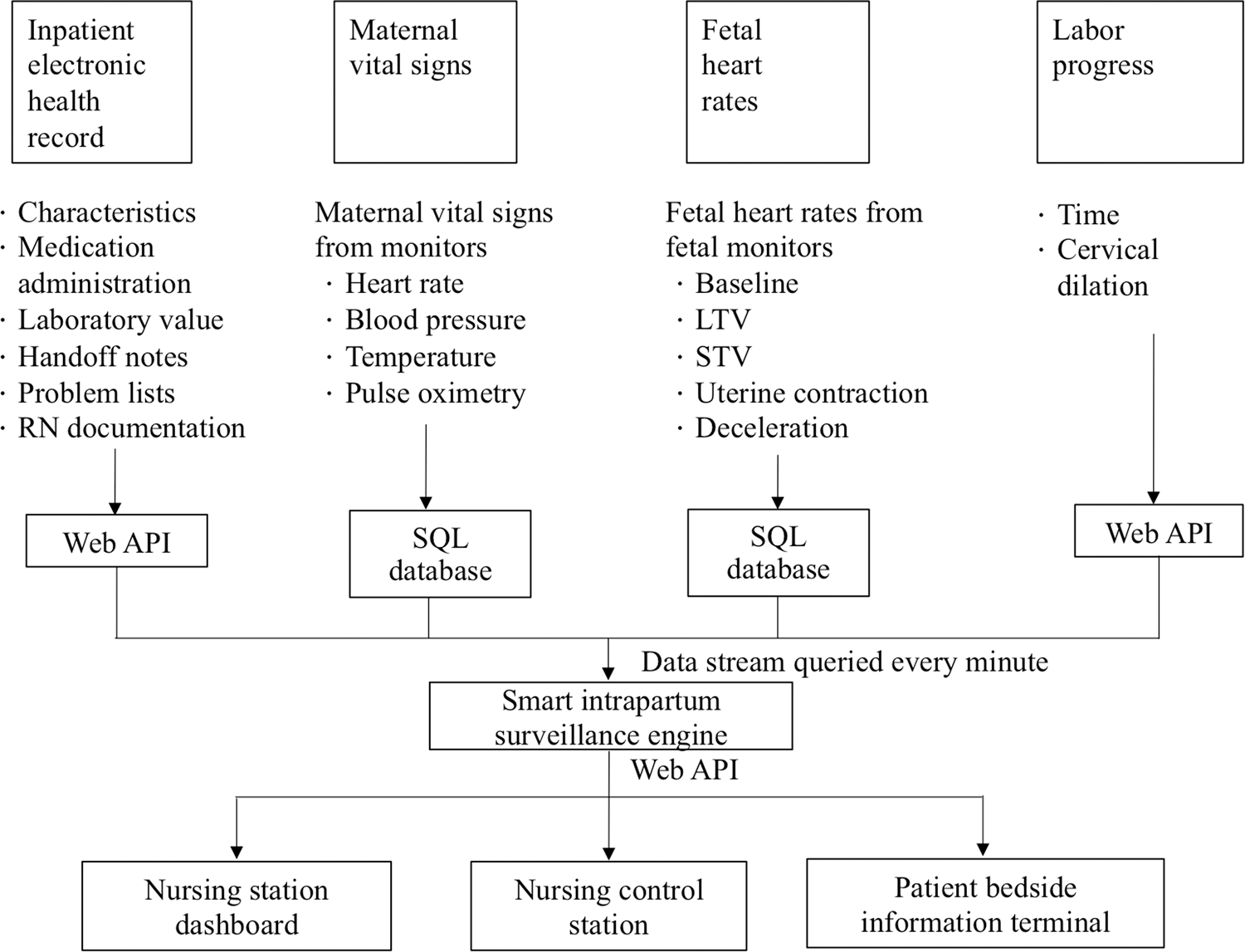

Information from electronic health records, bedside maternal and fetal vital sign monitors, and labor progress data are queried every minute by a surveillance engine. The aggregated data are then displayed on a nursing control station, a nursing station dashboard, and patient information bedside terminals through a web interface. API application programming interface, SQL structured query language, RN registered nurse, LTV long-term variation, STV short-term variation.
