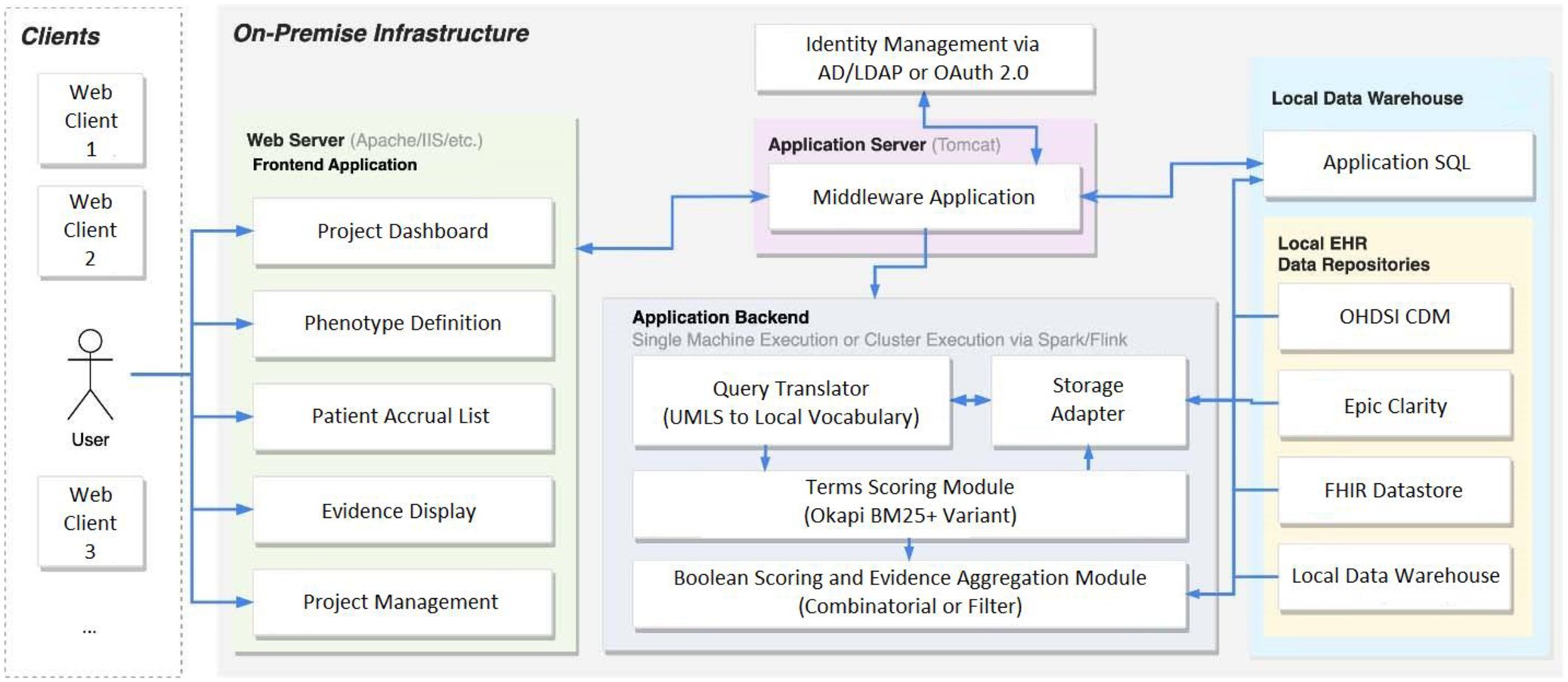

Fig. 2: IMPACT System Architecture.

From: The IMPACT framework and implementation for accessible in silico clinical phenotyping in the digital era

Fig. 2: IMPACT System Architecture.

A Diagram Showing an On-Premise Deployment of IMPACT. Desideratum I is implemented via the Local Data Warehouse, Desideratum II is implemented via the Terms Scoring Module, Desideratum III is implemented via the evidence aggregation module, Desideratum IV is implemented via the query translator, Desideratum V is implemented via the middleware application, and Desideratum VI is implemented via the web frontend.
