Fig. 4: Simulation outputs using the final reconstructed meshes.
From: Robust automated calcification meshing for personalized cardiovascular biomechanics

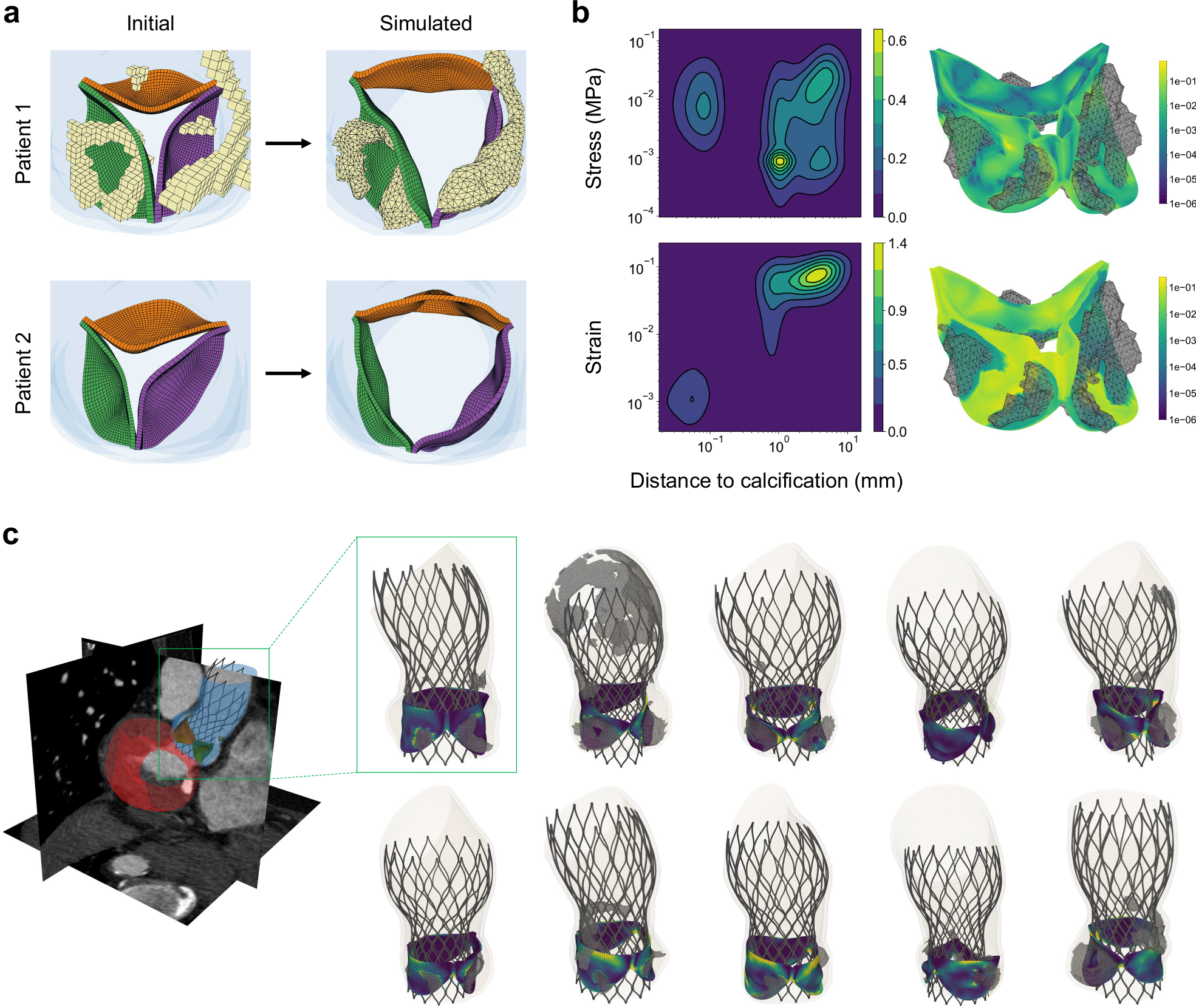

a Valve opening simulations demonstrate the effects of calcification on the final leaflet positions. Yellow is the ground-truth calcification, left is the input valve geometry predicted by DeepCarve, and right is the deformed geometry after finite element analysis. Movement is clearly restricted near calcified regions. b Stress (top) and strain (bottom) analyses from valve opening simulations. Left is the Gaussian KDE plot of stress/strain vs. distance to calcification from the aggregate of 35 test-set patient simulations. Right is one test-set patient with stress/strain overlaid with the valve leaflets, plus the ground-truth calcification (gray) for reference. c TAVR stent deployment simulation results. Left: image and simulated geometry overlay. Right: maximum principal stress magnitudes plotted on the aortic valve leaflets for 10 different test-set patients.
