Fig. 4: Antibiotic treatment value calculated by the algorithm in the simulation study population.

From: Algorithmic antibiotic decision-making in urinary tract infection using prescriber-informed prediction of treatment utility

Fig. 4: Antibiotic treatment value calculated by the algorithm in the simulation study population.The alternative text for this image may have been generated using AI.

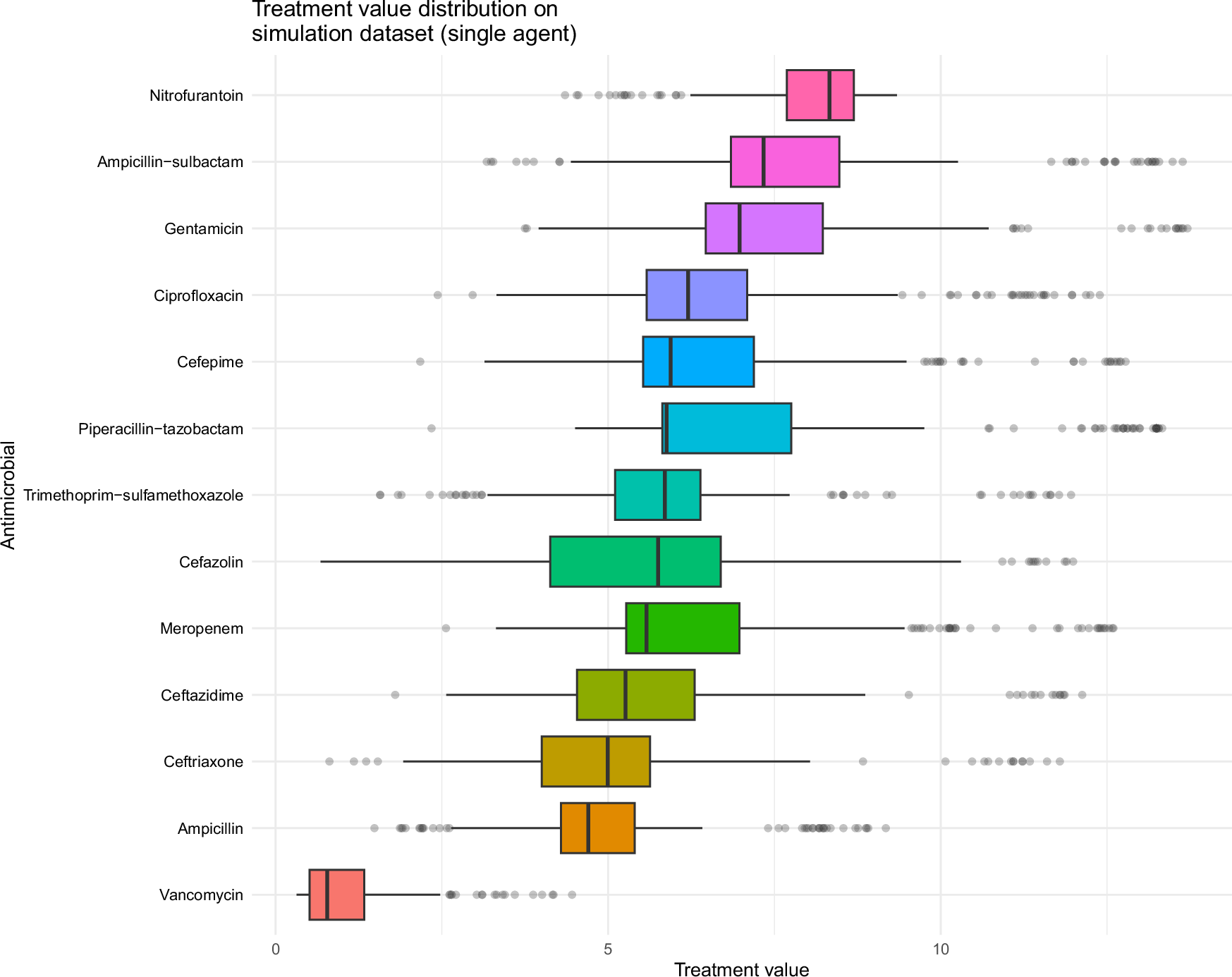

Distributions of antibiotic treatment value calculated by the antibiotic decision-making algorithm for Emergency Department attendees in the simulation study dataset. The central line represents the median, the box the interquartile range, the whiskers 1.5 times the interquartile range beyond quartiles one and three, and the dots outliers.
