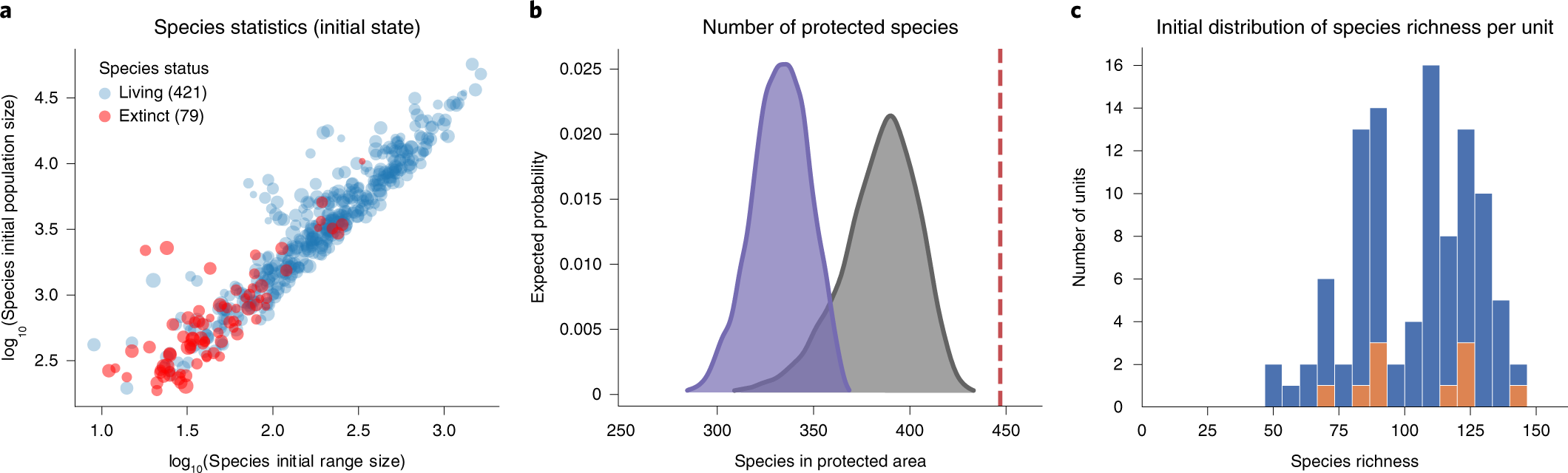

Fig. 4: Summary statistics for one simulation optimized to reduce species loss and informed through full recurrent monitoring.
