Extended Data Fig. 2: Differences in the delivery strategies used to explore the impact of changing delivery strategy on outcome achievement.
From: Synergies in environmental and agricultural water availability under climate change

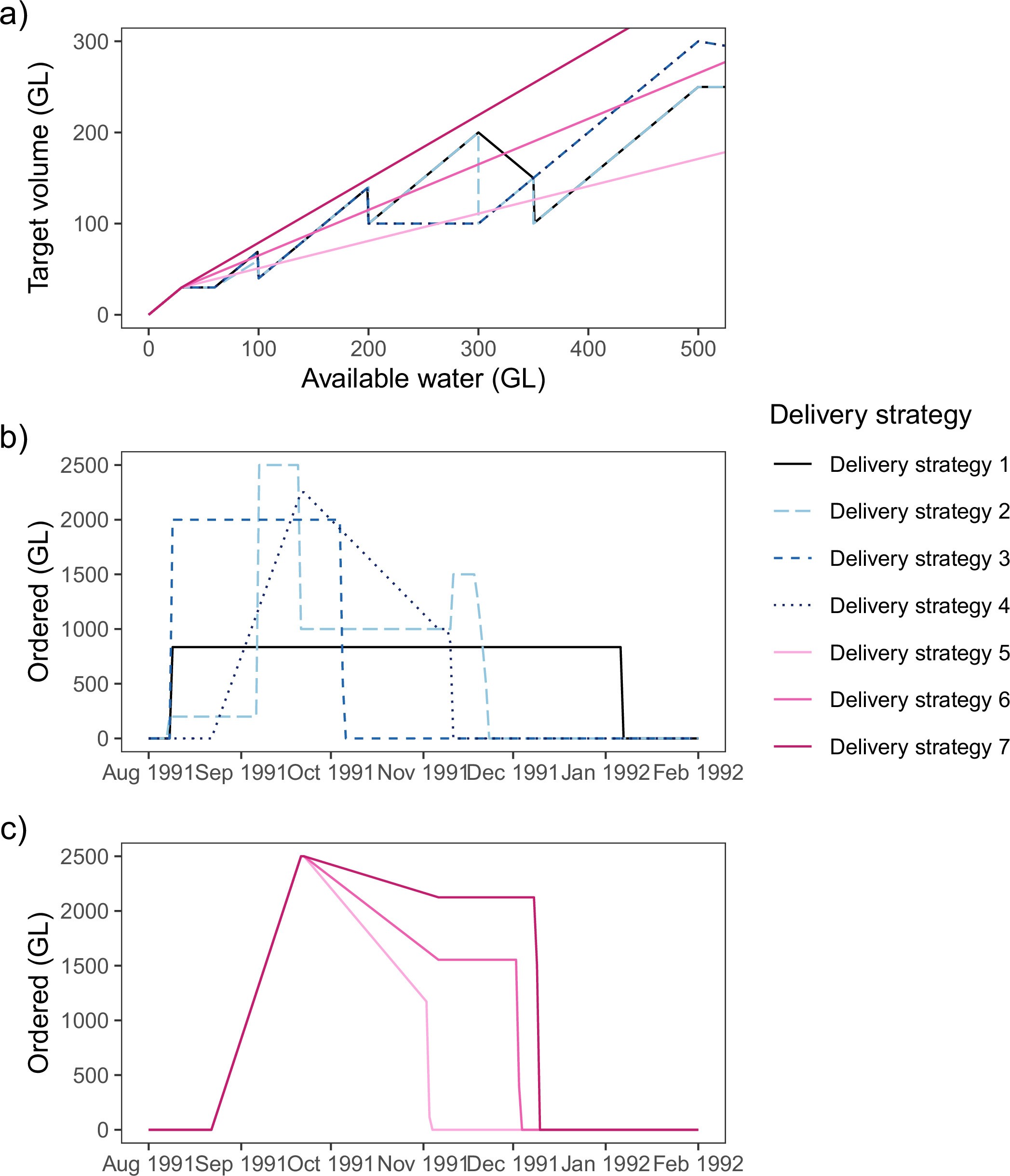

Panel a) illustrates the target environmental water order volume as a function of available water at decision date (Aug 1st). Delivery strategies 3 and 4 overlap entirely. Panel b) illustrates the time series of ordered water using different delivery strategies (1, 2, 3, 4) for 1991-92. Panel c) illustrates the time series of ordered water using different delivery strategies (5, 6, 7) for 1991-92.
