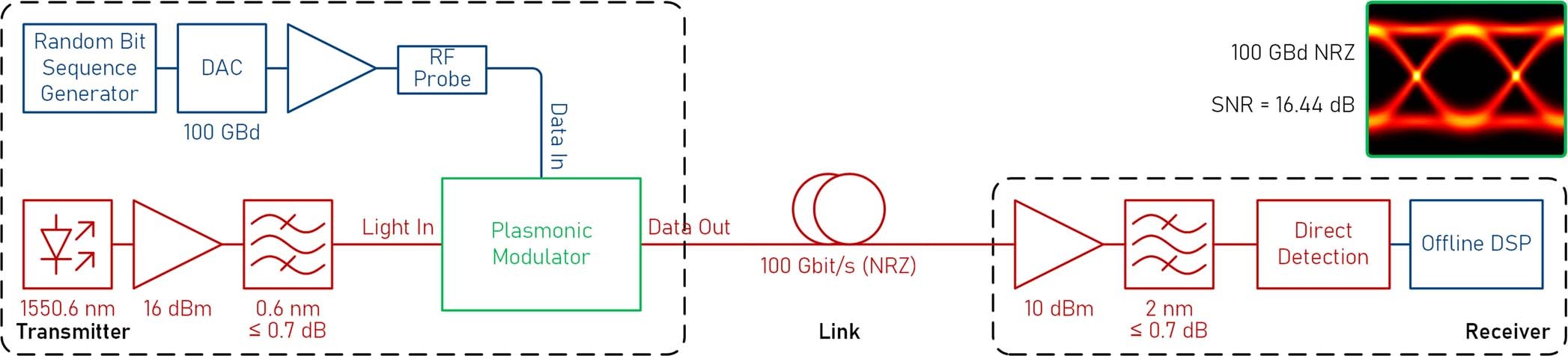

Extended Data Fig. 5: Data modulation experiment for externally driven monolithic plasmonic modulator.
From: A monolithic bipolar CMOS electronic–plasmonic high-speed transmitter

An amplified external source applies the electrical signal to the modulator. 100 GBd NRZ-OOK has been modulated and transmitted to the receiver for direct detection. The insets show the received optical eye after equalization.
