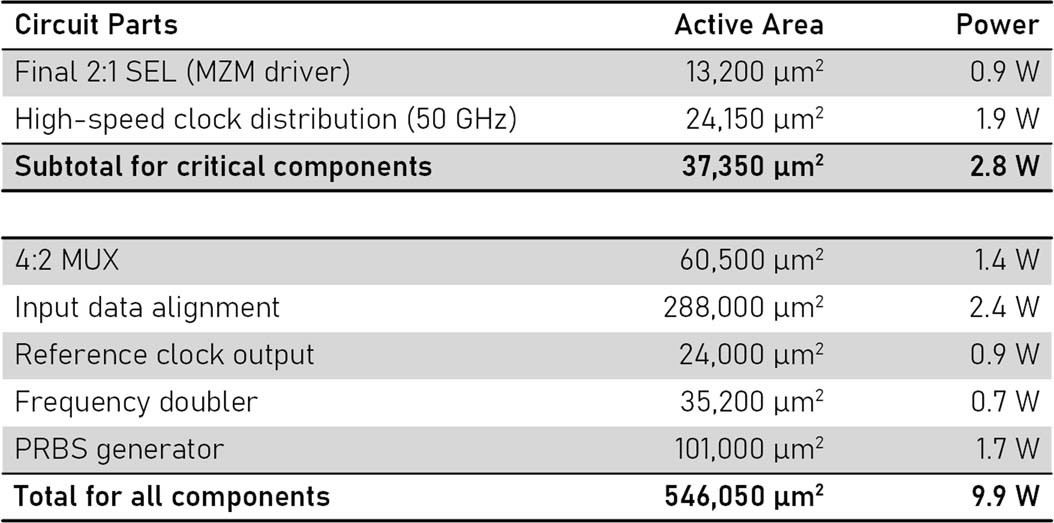

Extended Data Fig. 2: Active area and power consumption per circuit part.
From: A monolithic bipolar CMOS electronic–plasmonic high-speed transmitter
The operation-critical functions (2:1 SEL and clock distribution) are separated from the optional parts for advanced functionalities and for measurement purposes.
