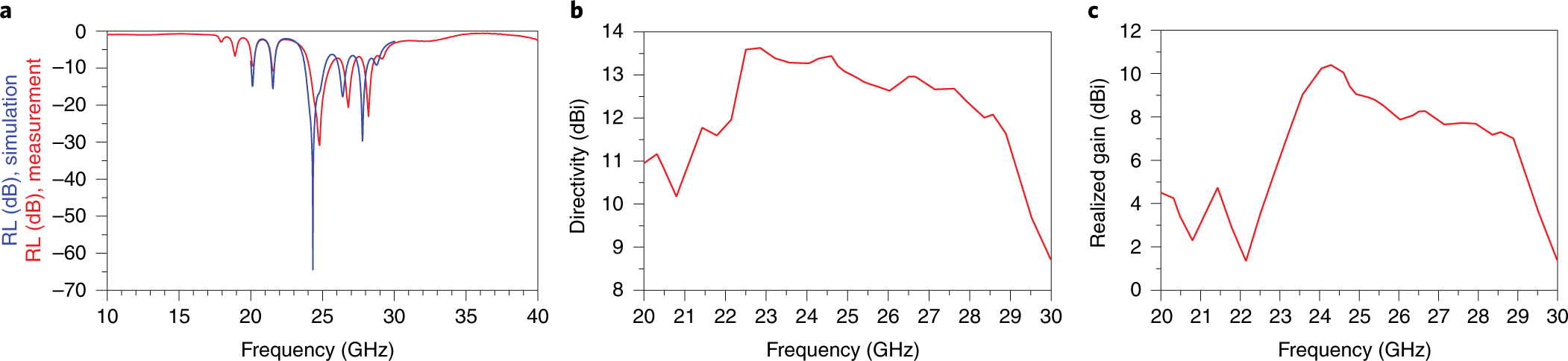

Fig. 2: mmWave antenna 5 × 1 array results.

a, Simulated and VNA-measured return loss (RL) of the array with resonance at 24.5 GHz and 26.5 GHz. b,c, Simulated antenna array directivity (b) and simulated array realized gain, which includes the effect of the return loss and the conductor losses (c).
