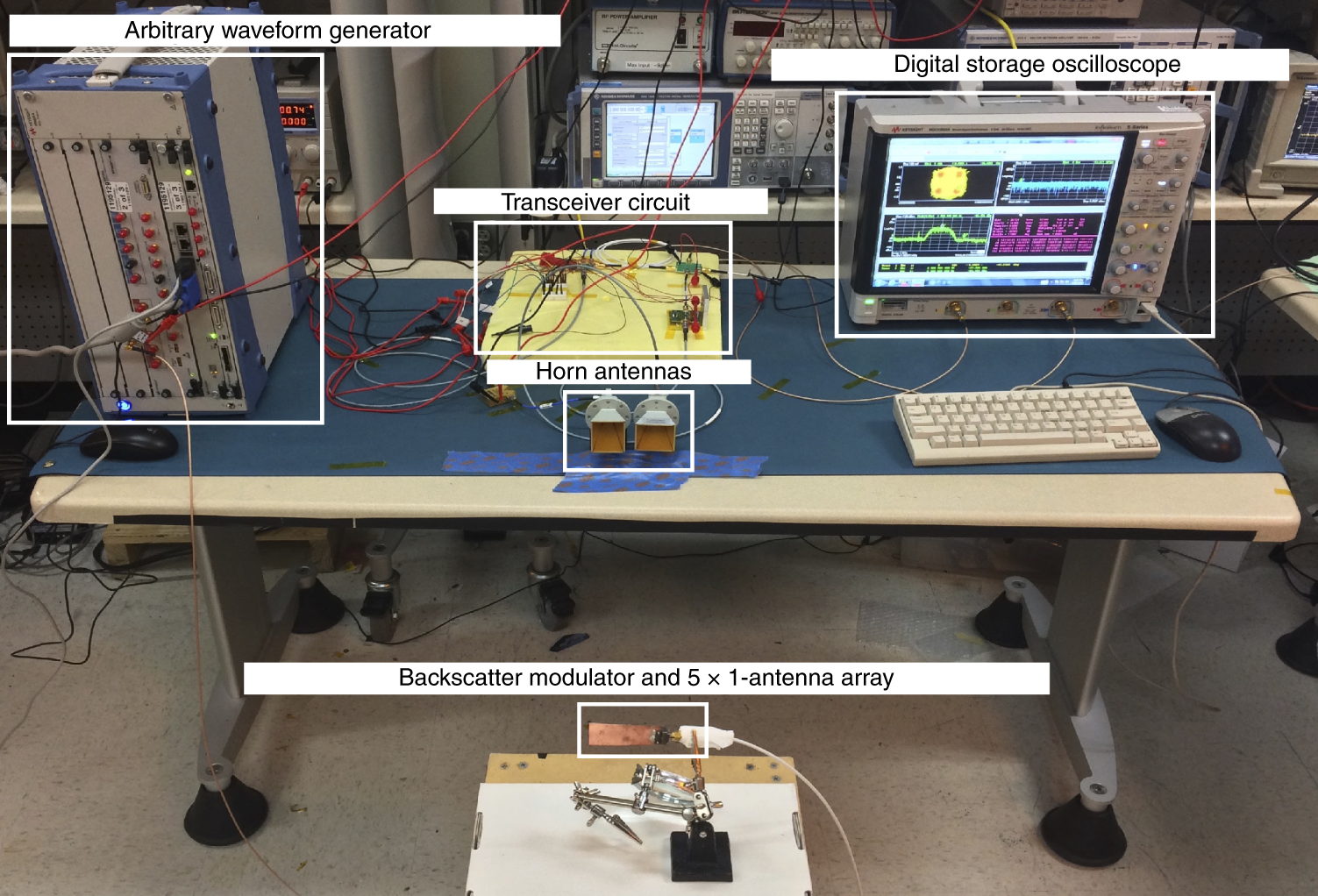

Fig. 5: The gigabit-per-second mmWave laboratory demonstration set-up.

The backscatter set-up, comprising a waveform generator that drives the backscatter communicator, and a custom transmit-and-receive chain for illuminating the backscatter communicator and decoding the reflected modulated signals.
