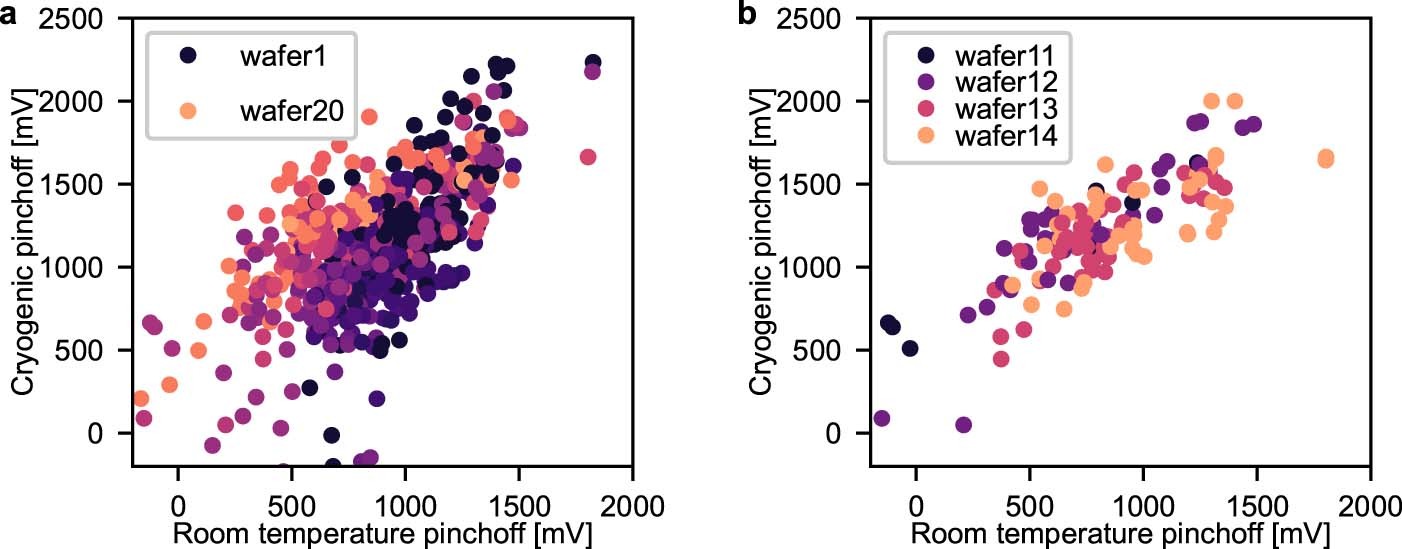

Extended Data Fig. 3: Correlations of threshold voltages between room temperature and low temperature.

From: Qubits made by advanced semiconductor manufacturing

Extended Data Fig. 3

For each gate, we plot the threshold voltage at room temperature versus the threshold voltage at low temperature, a, for 20 different wafers at different stages of the development and optimization of the process flow and b, for wafers 11-14.
