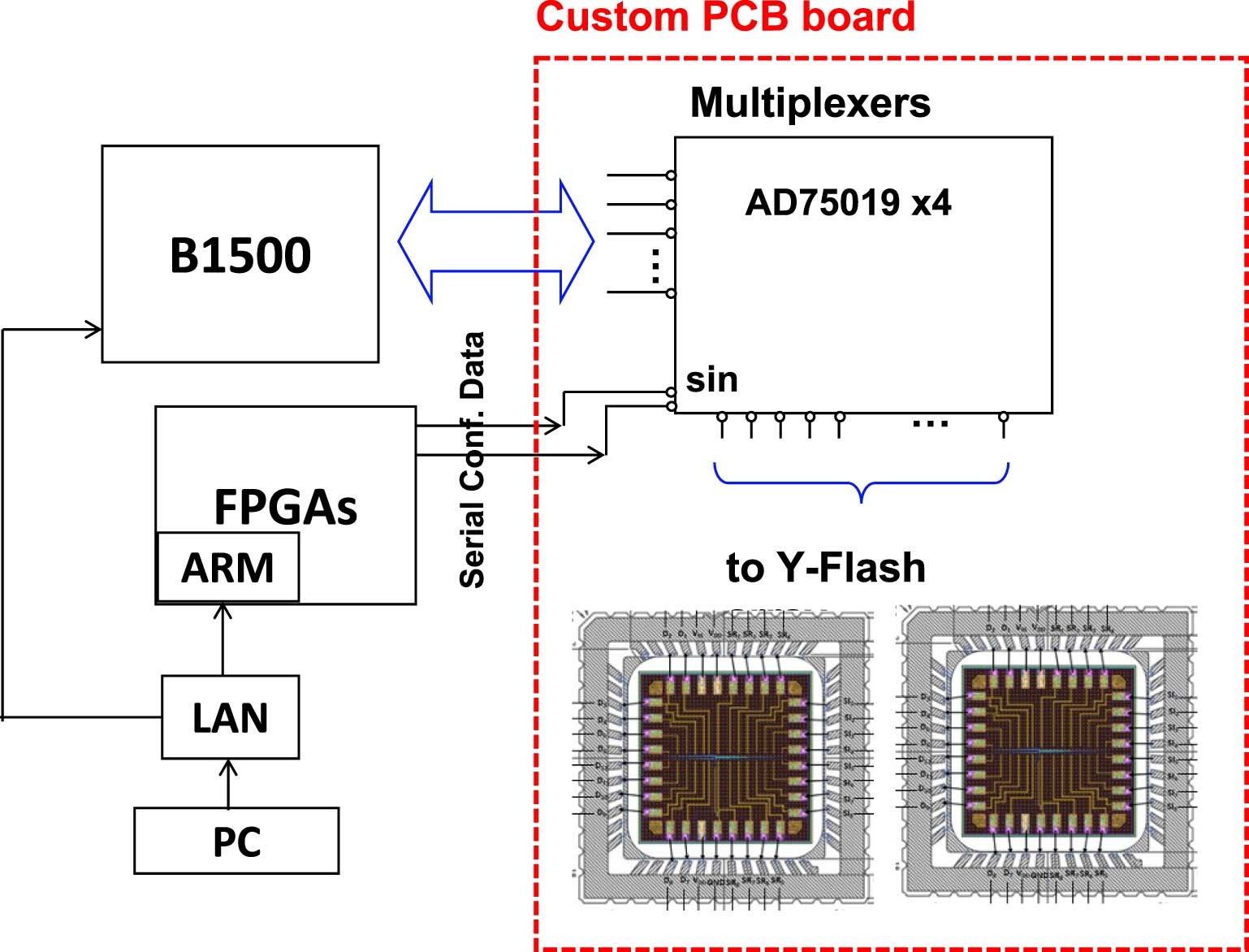

Extended Data Fig. 5: Setup of the testing system.
From: A memristive deep belief neural network based on silicon synapses
The schematic setup of the test system for array operations and memristive RBM demonstration.
