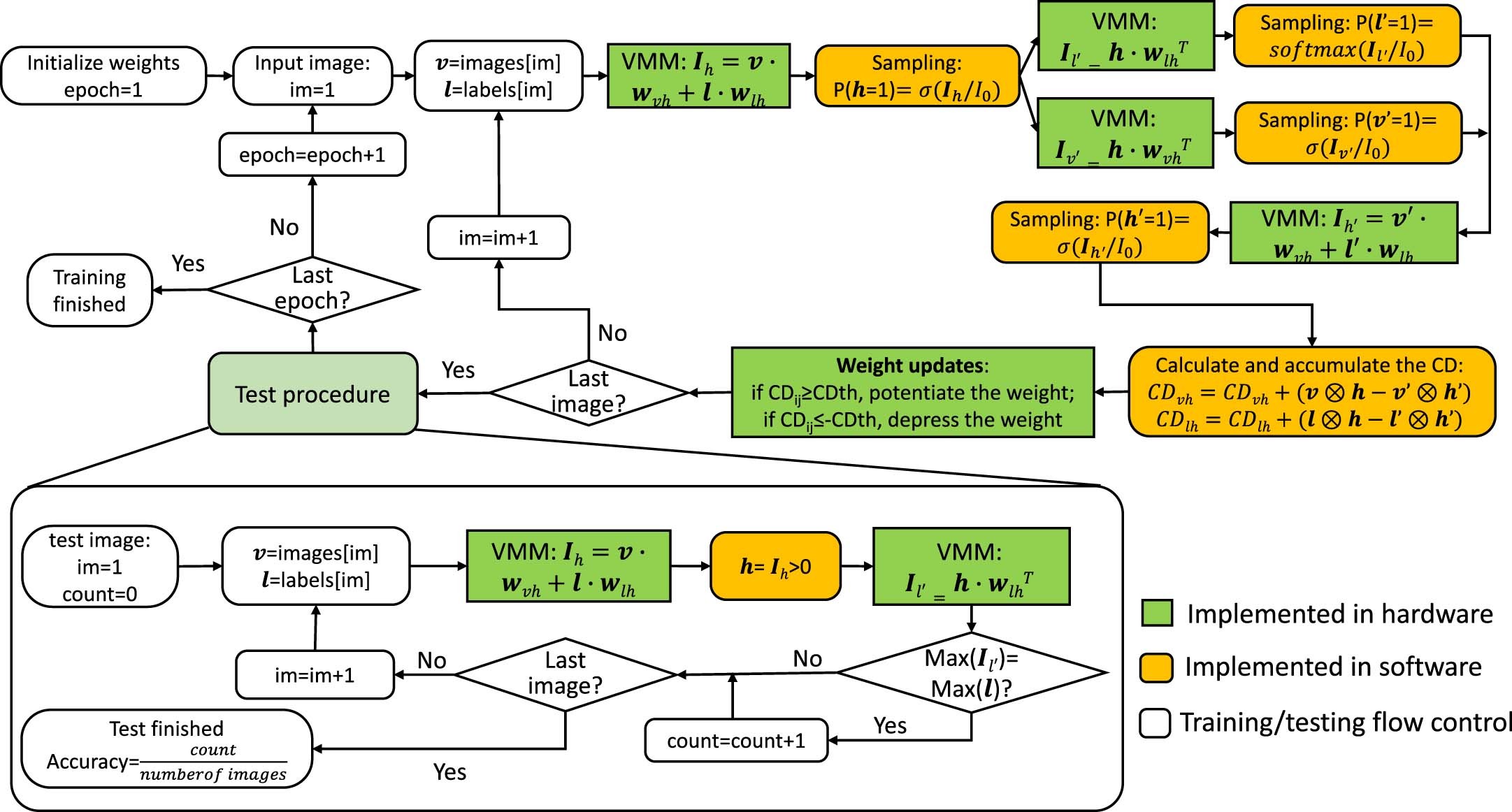

Extended Data Fig. 7: Flow chart of the online training of RBM including test algorithm after each training epoch.
From: A memristive deep belief neural network based on silicon synapses
The VMM and weight updates are performed in the memristive array using the testing system. The stochastic sampling, as well as the calculation and accumulation of the contrastive divergence (CD), are performed in software.
