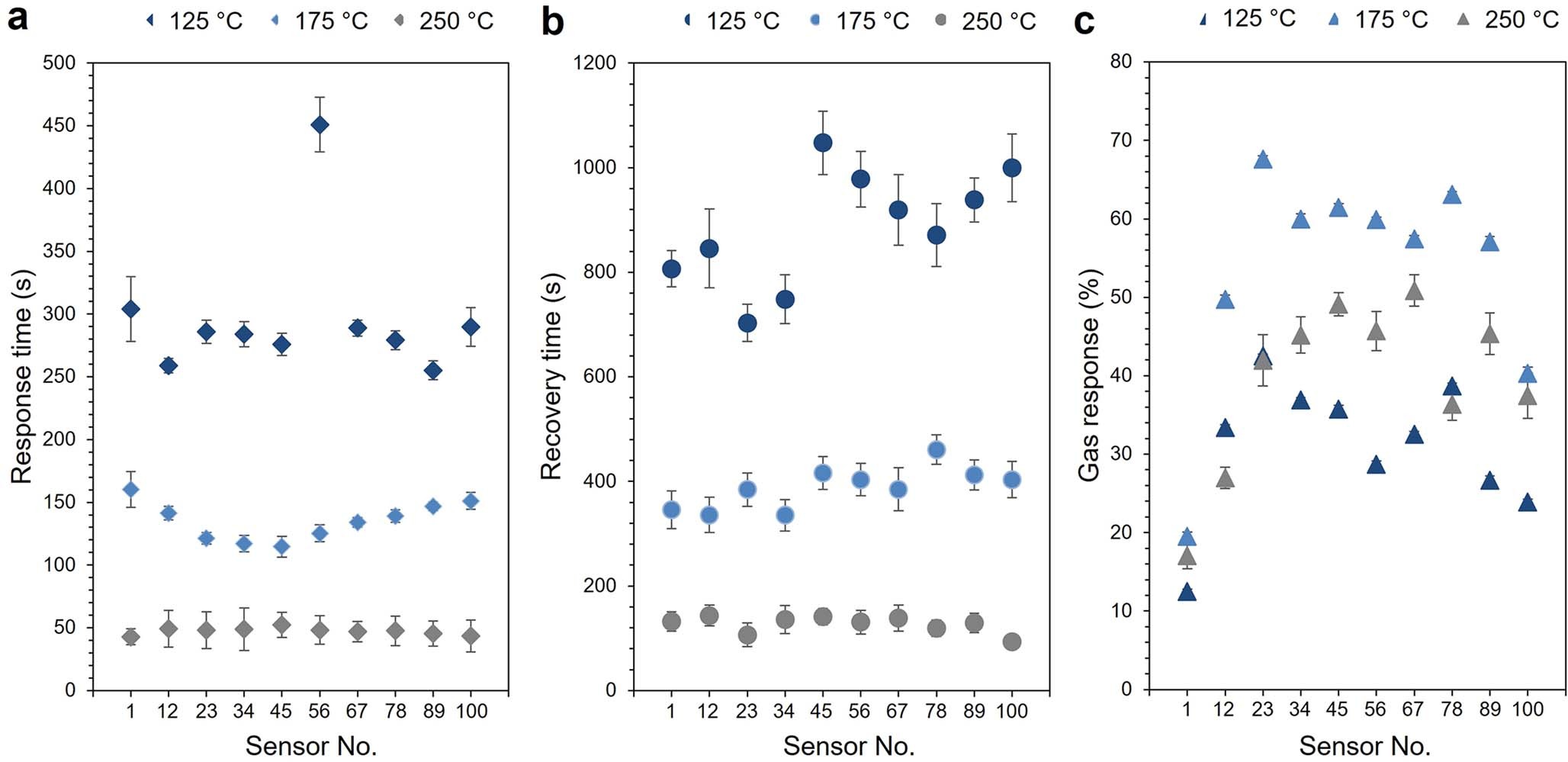

Extended Data Fig. 3: The statistical data of the diagonal sensors’ response (Sensor #1, 12, 23, 34, 45, 56, 67, 78, 89, 100) in sensor array chip to 1 ppm acetone at different working temperatures.

From: Biomimetic olfactory chips based on large-scale monolithically integrated nanotube sensor arrays

Extended Data Fig. 3: The statistical data of the diagonal sensors’ response (Sensor #1, 12, 23, 34, 45, 56, 67, 78, 89, 100) in sensor array chip to 1 ppm acetone at different working temperatures.The alt text for this image may have been generated using AI.

a, Response times. b, Recovery times. c. Gas responses. The sample size used to derive statistics is 6. The error bars indicate the standard deviation (SD). Data are presented as mean values +/- SD.
