Fig. 4: The origin and characterization of the latching effect.

From: Gallium nitride multichannel devices with latch-induced sub-60-mV-per-decade subthreshold slopes for radiofrequency applications

Fig. 4

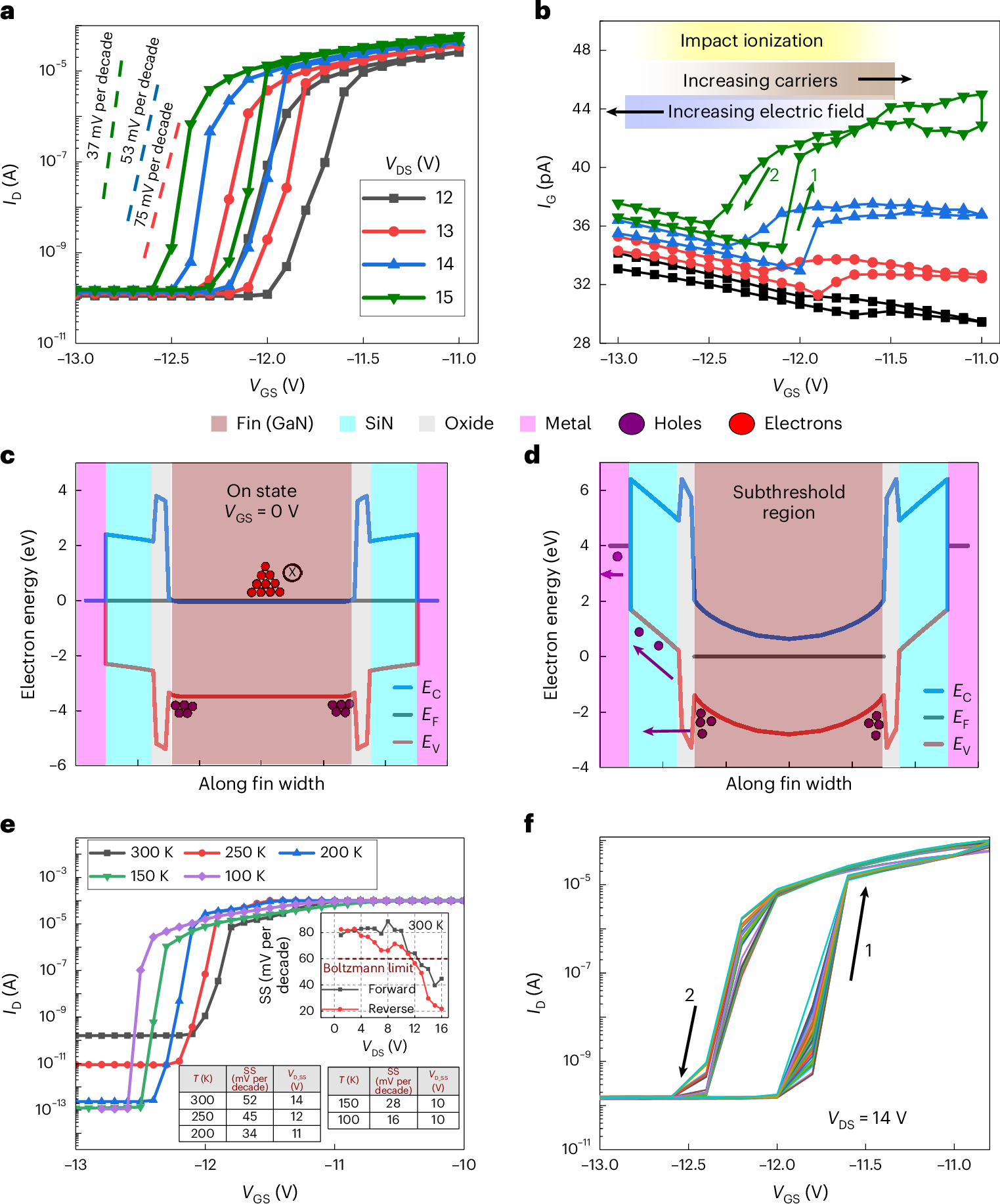

a, Transfer characteristics for varying VDS. b, IGVGS for the plots in a. c,d, Band diagram generated by self-consistent solution of drift-diffusion and Poisson’s equation in three dimensions cut along an AlGaN/GaN interface in the on state (c) and the subthreshold region (d). EC, EF and EV represent conduction band, electron fermi level and valence band energies, respectively. The holes and electrons generated during impact ionization are represented in the valence band and conduction band, respectively. e, IDVGS in subthreshold regime at the onset of SS < 2.3 kT q−1 for temperatures from 100 K to 300 K in steps of 50 K. To determine the onset, VDS was swept in steps of 1 V from 6 V to 14 V at each temperature. The table indicates these VDS onset values at which SS < 2.3 kT q−1 for each temperature. Inset: the variation of SS as a function of VDS at 300 K. f, The latching process with hysteresis window over 30 runs with ΔVGS of 200 mV.
