Scaled crystalline antimony ohmic contacts for two-dimensional transistors

Nature Electronics volume 8, pages 1191–1200 (2025)Cite this article

Subjects

An Author Correction to this article was published on 13 January 2026

This article has been updated

Abstract

Transition metal dichalcogenides are a potential alternative to silicon and could be used to create transistors with a contacted gate pitch below 40 nm as required by the ångström-node transistor technology. However, it remains challenging to maintain an ohmic contact when the contact length is reduced to less than 20 nm. Here we show that crystalline semi-metallic antimony contacts can be epitaxially grown on molybdenum disulfide (MoS2) by molecular beam epitaxy, creating ohmic contacts with a resistance of 98 Ω µm at a contact length of 18 nm. We use the contacts to build scaled field-effect transistors with a contacted gate pitch of 40 nm with drive currents of 0.85 mA µm−1, 0.95 mA µm−1 and 1.08 mA µm−1 for monolayer, bilayer and trilayer MoS2 channels, respectively. Statistical analysis of transistor arrays confirms that the crystalline antimony contacts are reproducible and stable.

This is a preview of subscription content, access via your institution

Access options

Buy this article

  • Purchase on SpringerLink
  • Instant access to the full article PDF.

USD 39.95

Prices may be subject to local taxes which are calculated during checkout

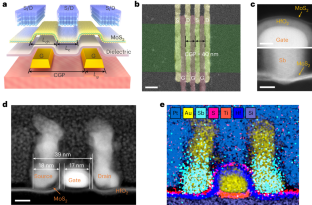

Fig. 1: Scaling monolayer MoS2 transistors to 40-nm CGP.

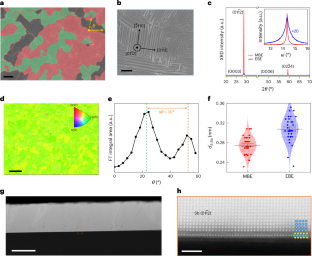

Fig. 2: Characterizations of MBE crystalline Sb (\(01\bar{1}2\)).

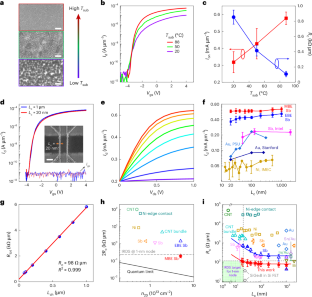

Fig. 3: Lc scaling of MBE Sb (\({\rm{01}}\bar{{\rm{1}}}{\rm{2}}\))–MoS2 contact.

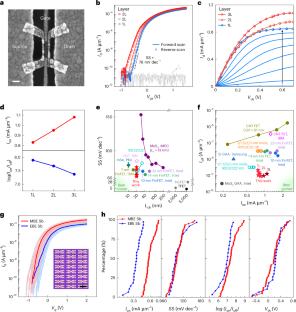

Fig. 4: Electrical performance of MoS2 FETs with 40-nm CGP.

Similar content being viewed by others

Data availability

The data that support the findings of this study are available from the corresponding authors on reasonable request.
