A neuromorphic imager based on a cascaded optoelectronic synapse

Nature Electronics (2026)Cite this article

Subjects

Abstract

The human retina can provide inspiration for the development of optoelectronic devices for artificial vision systems. It has, in particular, a curved geometry for low optical aberration imaging and is capable of signal preprocessing, in part due to its high synaptic facilitation. However, it remains challenging to create artificial synaptic devices with mechanical softness, curvilinear form factors and superior synaptic facilitation. Here we report a cascaded two-stage optoelectronic synapse that uses silicon photovoltaic cells to modulate sodium-alginate-gated synaptic transistors. The photovoltaic cells and an electric double-layer capacitor convert the initial light signal into a gate voltage (stage one), which then controls the postsynaptic current in the channel of the synaptic transistor (stage two). This cascaded synaptic signal transmission mechanism results in high synaptic facilitation of the postsynaptic signal. The system exhibits stable and long-term linearly potentiated characteristics, enhancing the accuracy of pattern recognition. We use an array of the cascaded optoelectronic synapses to create a curvy, kirigami-structured neuromorphic imager, which mimics the curved geometry and neural signal transmission of the human retina and provides visual information sensing and preprocessing functions.

This is a preview of subscription content, access via your institution

Access options

Buy this article

  • Purchase on SpringerLink
  • Instant access to the full article PDF.

USD 39.95

Prices may be subject to local taxes which are calculated during checkout

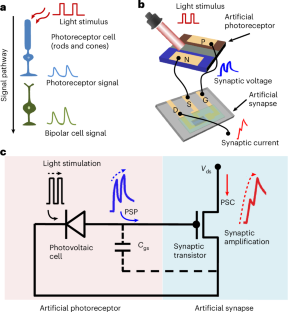

Fig. 1: Overview and working principle of the cascaded optoelectronic synapse.
Fig. 2: Device structure and electrical characteristics of the EDL synaptic transistor.

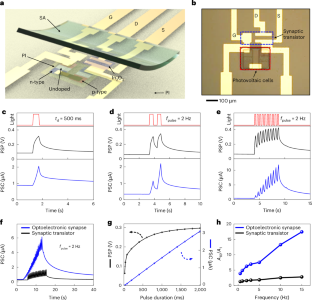

Fig. 3: Cascaded optoelectronic synapse.

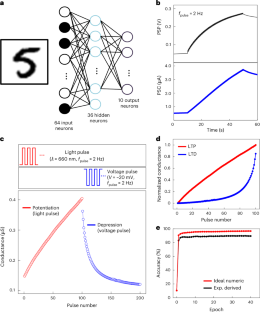

Fig. 4: Linearly potentiated synaptic plasticity for neuromorphic computing.

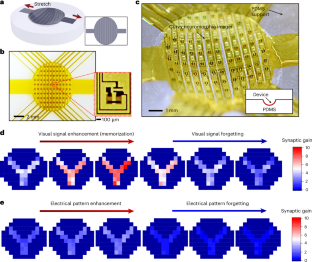

Fig. 5: Curvy neuromorphic imager.

Similar content being viewed by others

Data availability

The data that support the findings of this study or additional data related to this paper are available from the authors upon request.
