Extended Data Fig. 3: Cryo-ET reconstructions of Nafion-LSC-Pt aggregates with increasing I/C ratio.
From: Three-dimensional nanoimaging of fuel cell catalyst layers

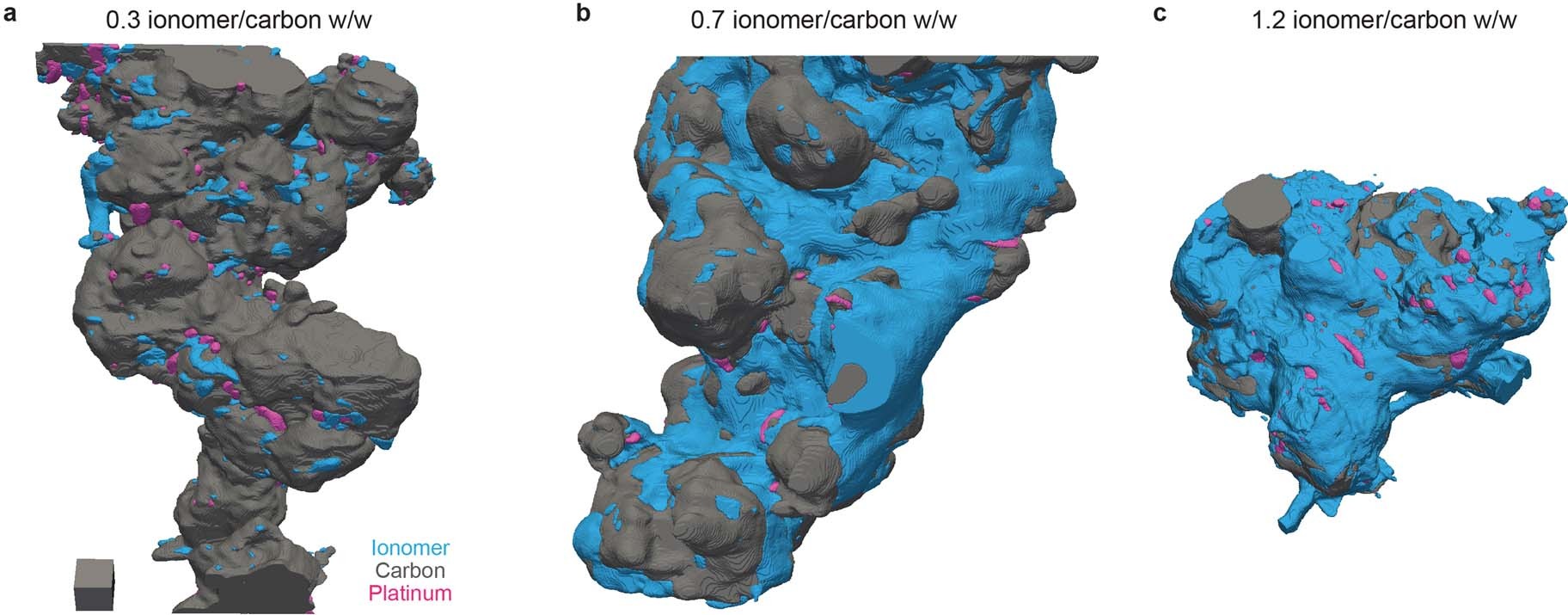

a-c, Segmented volumes of aggregates from the LSC3, 7 and 12 samples, respectively. All volumes are shown at the same scale, the scale cube is 203 nm3.
