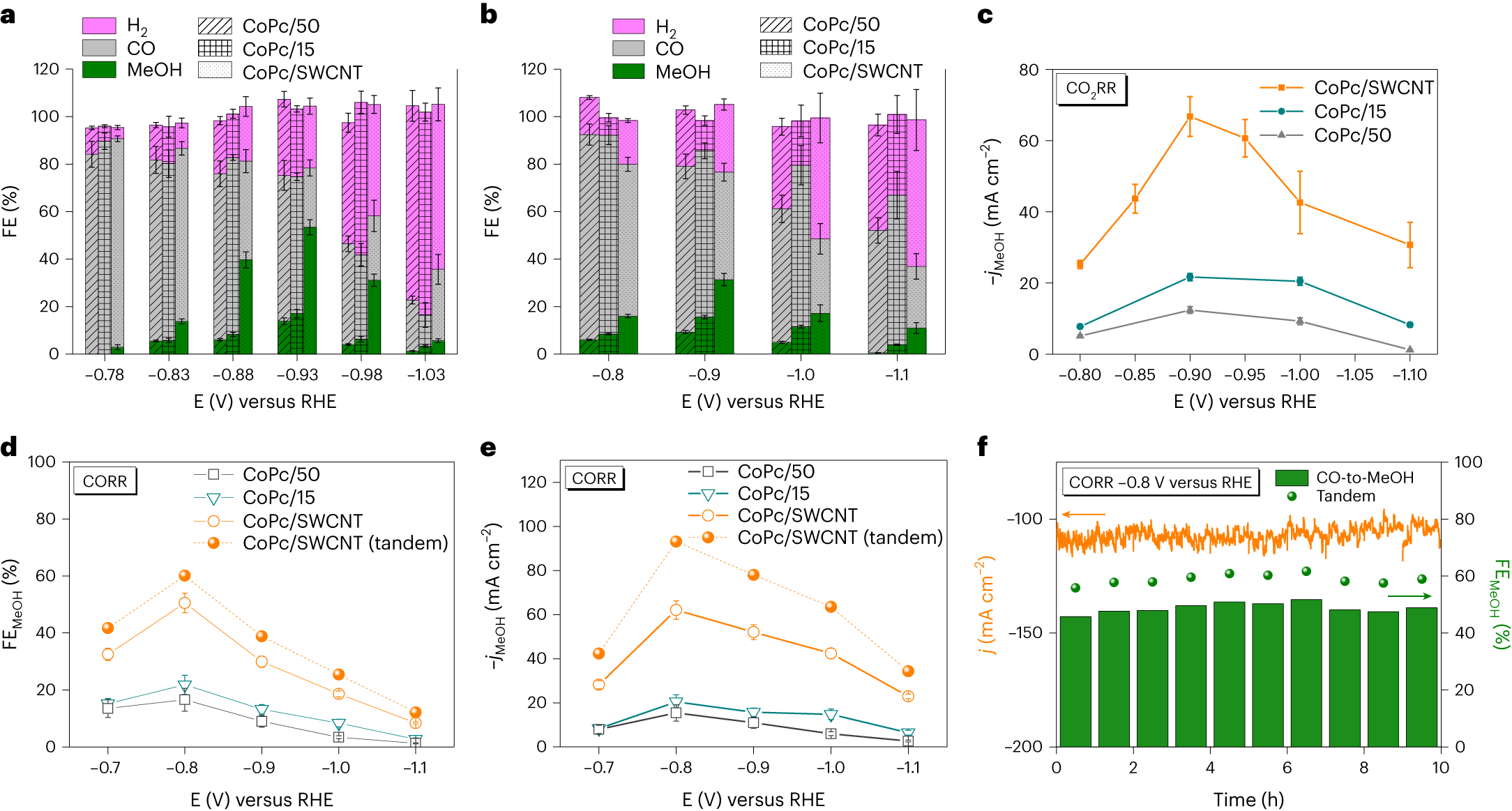

Fig. 3: Electrochemical CO2 reduction performance.
From: Strain enhances the activity of molecular electrocatalysts via carbon nanotube supports
a,b, FE of methanol, CO and H2 in an H-cell with 0.5 M KHCO3 as electrolyte (a) and in a flow cell with 0.1 M KOH + 3 M KCl as electrolyte (b). c, jMeOH of CoPc/SWCNT, CoPc/15 and CoPc/50 catalysts in a flow cell under CO2 atmosphere. d,e, FEMeOH (d) and jMeOH (e) of CoPc/SWCNTs, CoPc/15 and CoPc/50 in a flow cell under CO atmosphere. f, Long-term stability and corresponding FEMeOH of CoPc/SWCNTs at −0.8 V versus RHE. The error bars indicate the s.d. among values from three repeated measurements.
