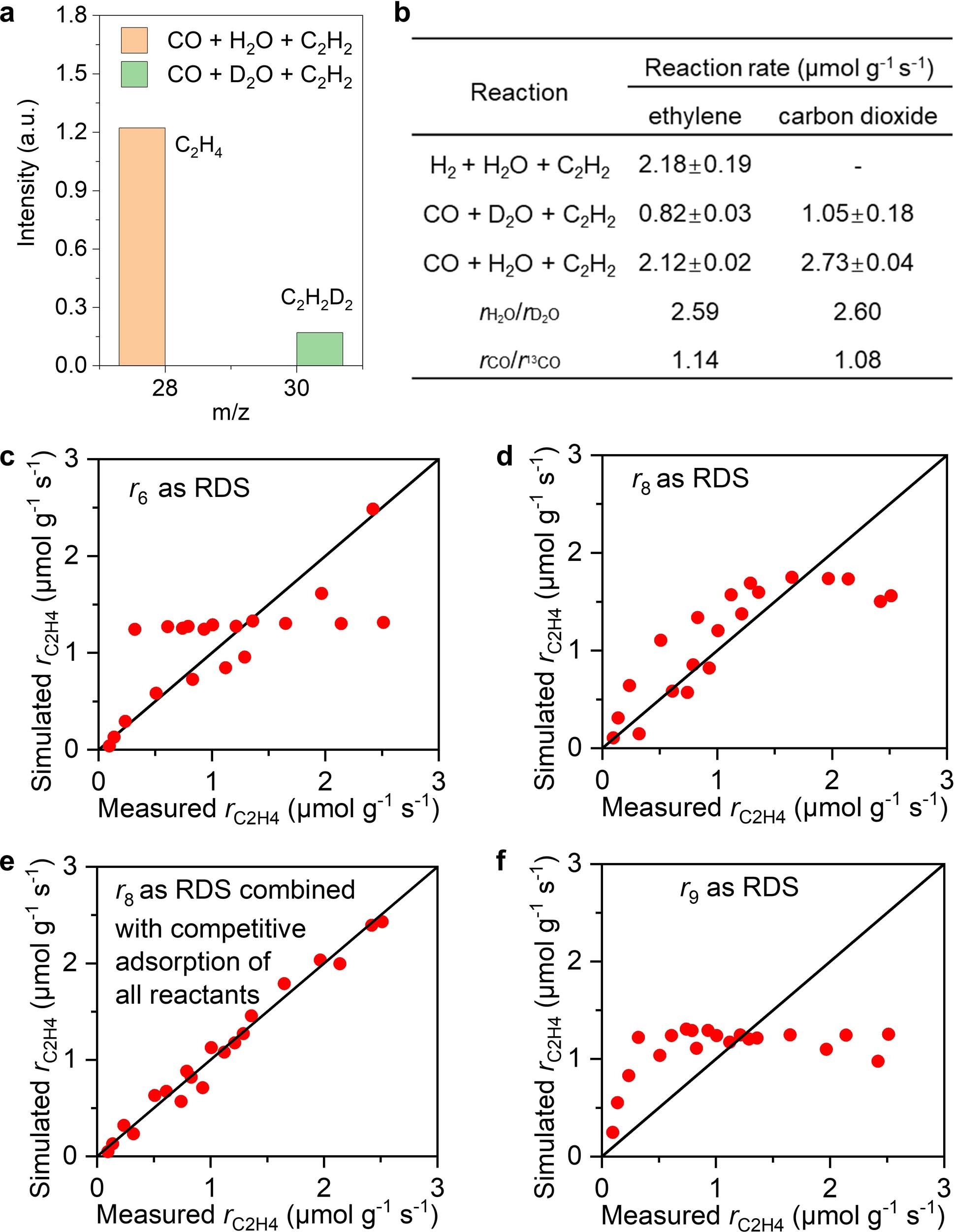

Extended Data Fig. 7: Kinetic measurements.
From: Acetylene hydrogenation to ethylene by water at low temperature on a Au/α-MoC catalyst
a,b, Kinetic isotope effect (KIE) of the CO-H2O-AHE reaction by replacing H2O or CO with D2O and 13CO, respectively. a, MS signals. b, Influence of KIE on the reaction rate determined by GC. Error bars represent the standard deviation from at least two independent measurements. c-f, Correlation between experimentally measured rC2H4 and simulated ones by assuming different rate-determining step (RDS) in the reaction model (See Supplementary Note 2).
