Fig. 2

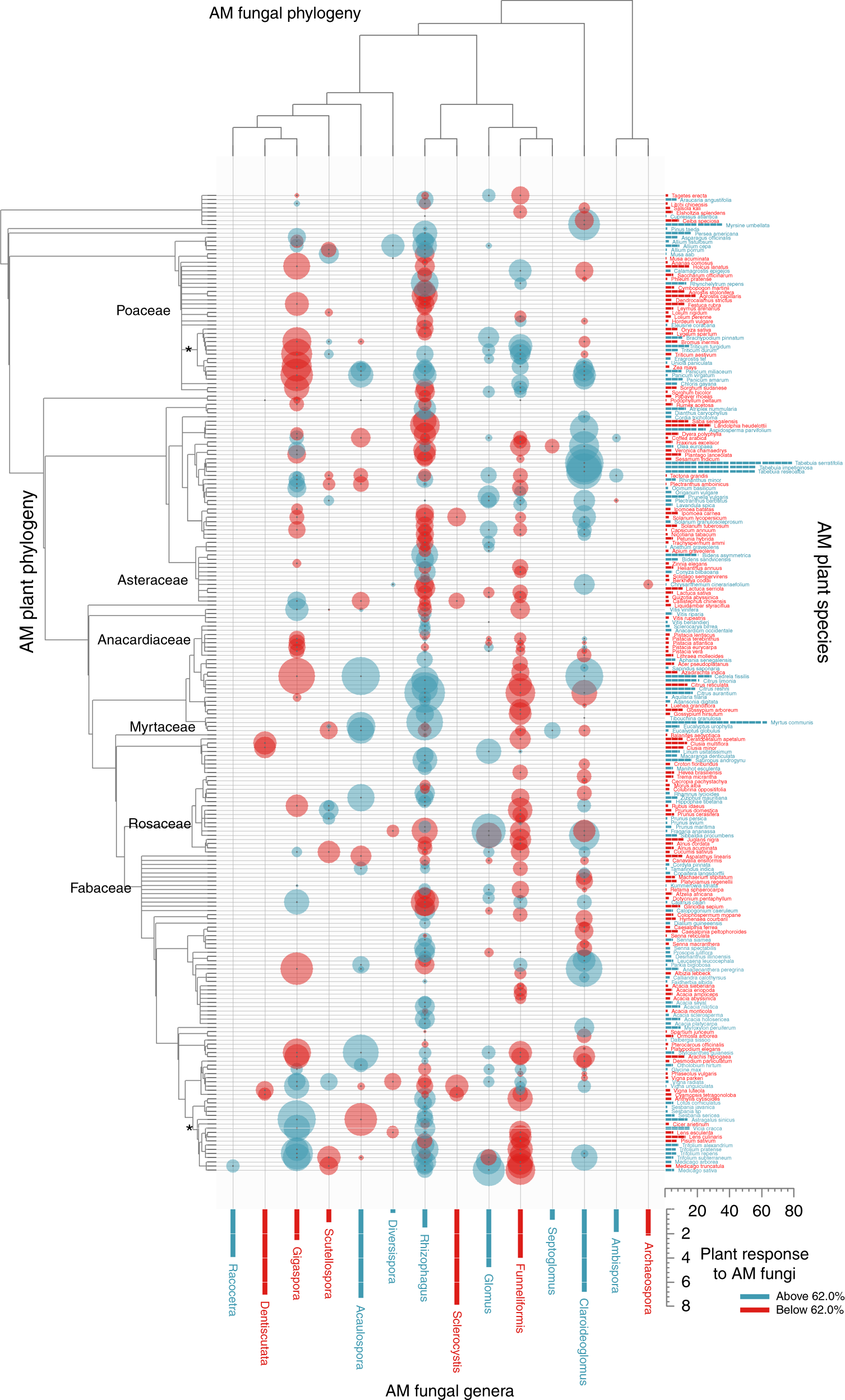

Heat map of plant response to arbuscular mycorrhizal (AM) fungi across 456 combinations of AM plants and fungi (marked with bubbles). Bubble size indicates deviation of mean percent plant biomass response to AM fungi from the overall average of 62.0 (±5.9 SE) (blue above average, red below average), illustrating the effect of the plant phylogeny × fungal genus interaction. Bars (plants right, fungi bottom) are marginal means across the bubble values. Plant families with five or more species in the data are labeled, and asterisks indicate the two plant clades (one each in Poaceae and Fabaceae) highlighted in the Discussion
