Fig. 1
From: Automated adherent cell elimination by a high-speed laser mediated by a light-responsive polymer

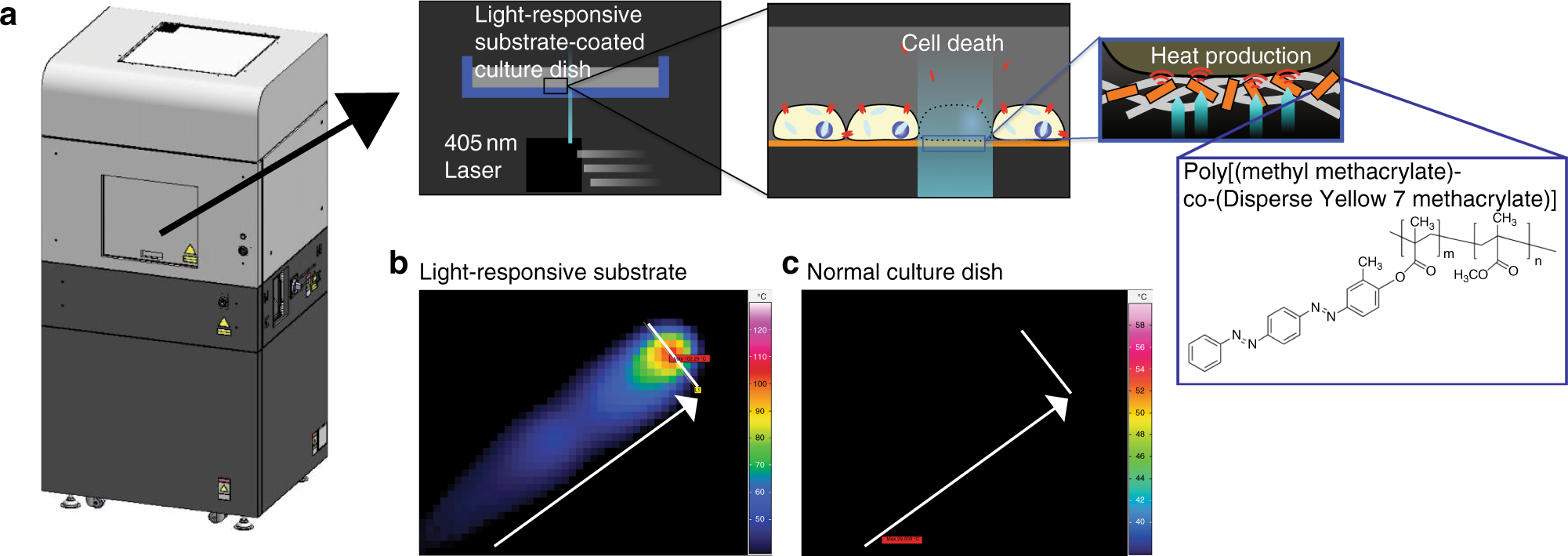

Schemes of the LiLACK system and its focused heat production. a Schemes of LiLACK system. b, c Thermal images of the surfaces of cell culture dishes after laser irradiation. The laser was irradiated at 80 mm per second and 0.3 W with a width of 50 µm towards the arrow direction. The thermal images were acquired in light-responsive polymer-coated dish (b) or normal cell culture dish (c) from above adjacent without any liquid medium. The bars without arrowheads in the thermally responsive area indicate 50 µm
