Fig. 4

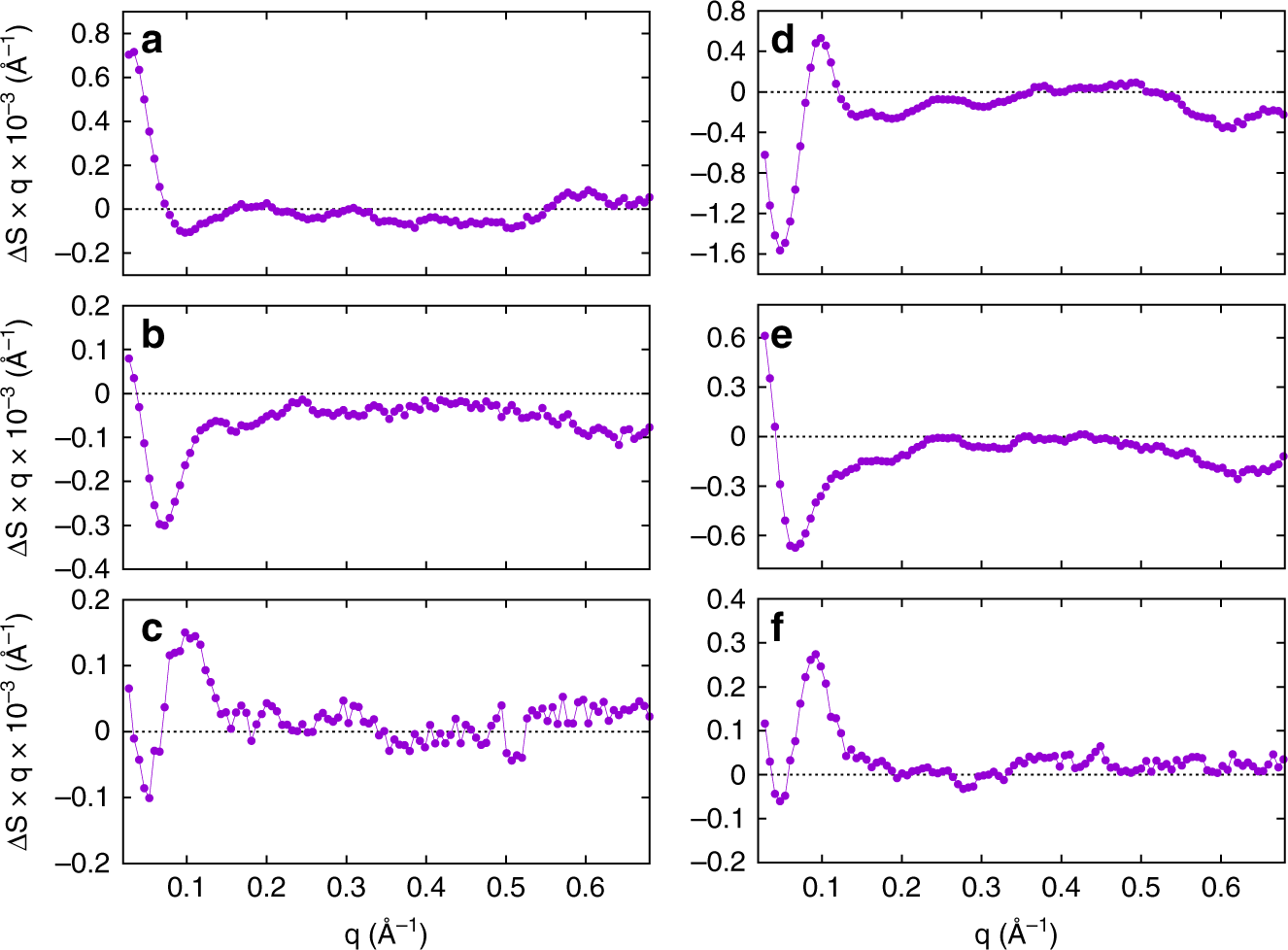

Singular value decomposition analysis. First, second and third basis pattern obtained by singular value decomposition of the entire time-resolved X-ray scattering dataset for the photosensory region (a–c) and full-length Cph1 protein (d–f)
