Fig. 4
From: Raftophilic rhodopsin-clusters offer stochastic platforms for G protein signalling in retinal discs

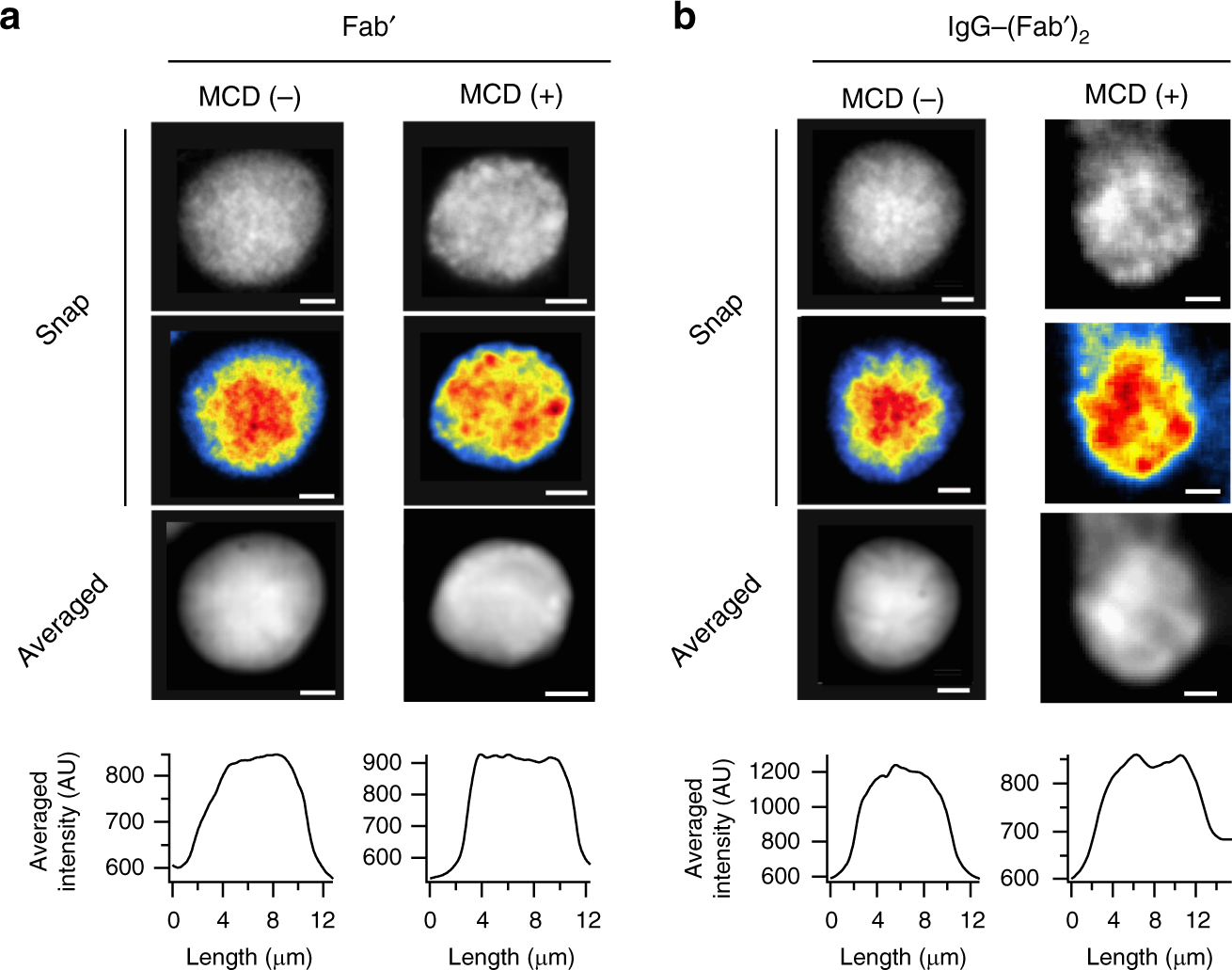

Effect of cholesterol-depletion and IgG-crosslinking on the distribution of rhodopsin. a Representative semi-multimolecule fluorescence images indicating the distribution of rhodopsin in discs treated with and without 20 mM MCD (right and left, respectively). Top and upper-middle panels are the still images from a movie, presented in grey-scale and pseudocolour (modified-Jet LUT), respectively. Lower-middle image was obtained by averaging 10 s of the movie. Bottom is the fluorescence intensity profile along the transverse line of the averaged image. b Representative semi-multimolecule fluorescence images indicating the distribution of IgG-crosslinked rhodopsin in a disc treated with and without 20 mM MCD (right and left, respectively). The panels are presented in the same sequence as in (a). Scale bars: 2 μm
