Fig. 6
From: Crystal structures of AztD provide mechanistic insights into direct zinc transfer between proteins

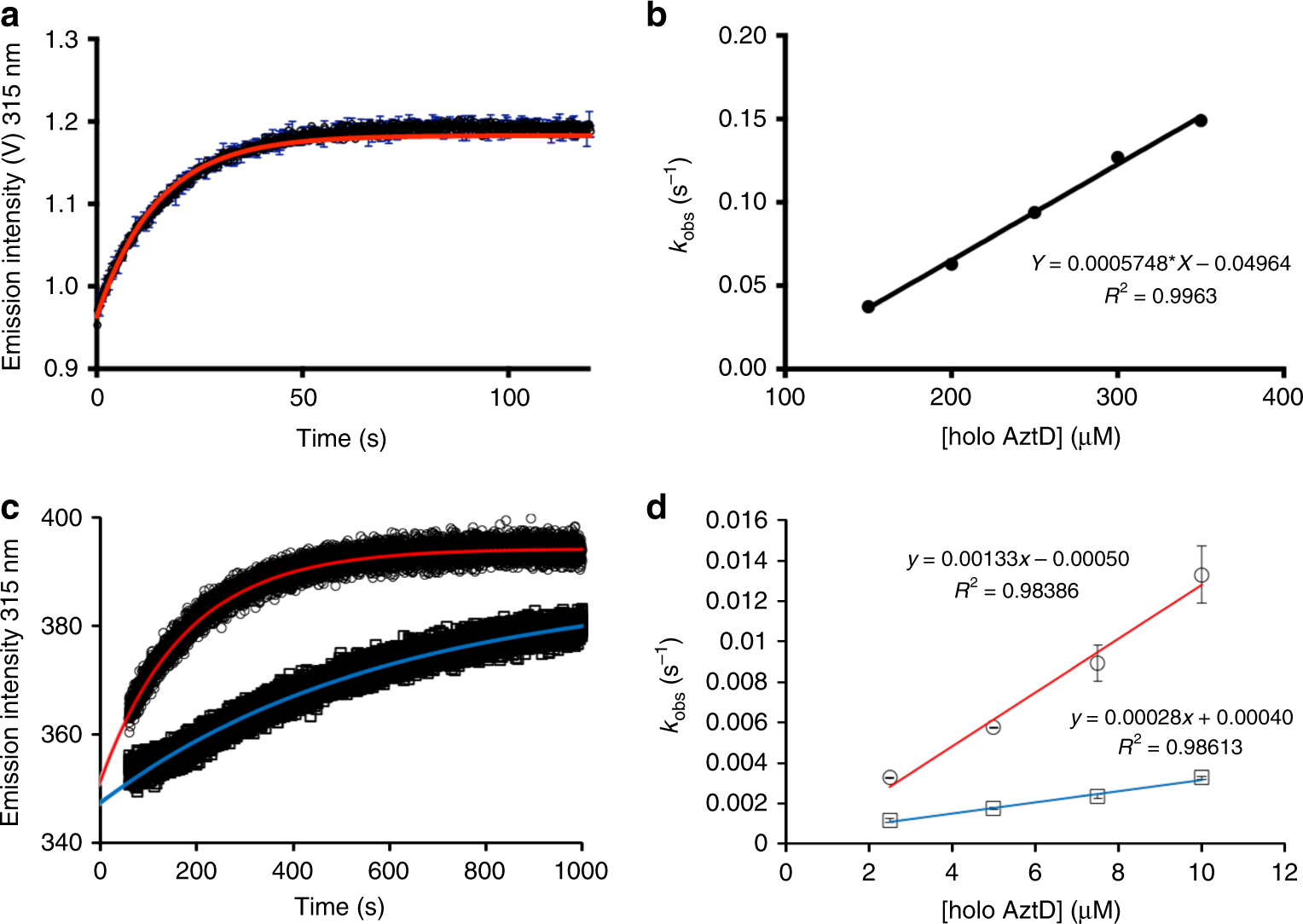

Kinetics of zinc transfer from AztD to AztC. a Representative stopped-flow data (black) with fit to a first order kinetic scheme (red). b Observed rate constant versus AztD concentration under pseudo-first order stopped-flow conditions. Error bars represent standard deviations from duplicate experiments (n = 2). c Representative kinetic data from standard fluorescence emission experiments for WT (circles) and Y121A (squares) with fits to a first order kinetic scheme (red and blue, respectively). d Observed first order rate constant versus AztD concentration for standard fluorescence data under pseudo-first order. Error bars represent standard deviations from triplicate experiments (n = 3). Symbols and linear fit colors are as for c
