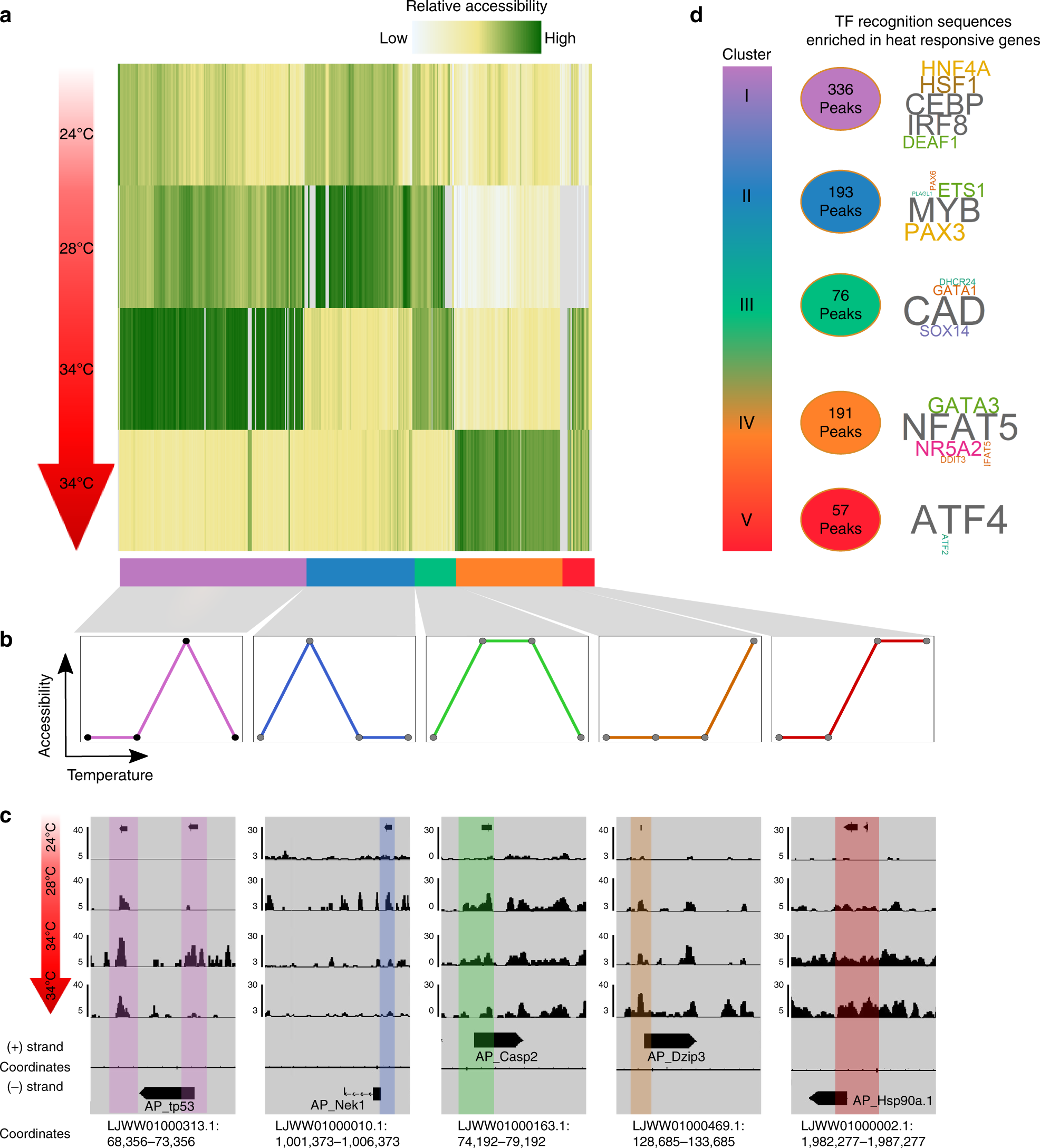

Fig. 3
From: The role of chromatin dynamics under global warming response in the symbiotic coral model Aiptasia
Dynamic chromatin changes during heat-stress in apo-symbiotic Aiptasia. a 853 ATAC-seq sites identified for each temperature were clustered, yielding five accessibility clusters: (I, purple) sites accessible at day 21 in 34 °C, (II, blue) accessible at day 9 in 28 °C, (III, green) accessible at day 9 in 28 °C and day 21 in 34 °C, (IV, orange) accessible at day 28 in 34 °C, and (V, red) accessible at day 21 and day 28 in 34 °C. b Characteristic patterns of ATAC-seq sites accessibility. c Representative examples of genes from each accessibility clusters. Each window is 5 kb; specific coordinates are mentioned bellow tracks; sites of interest are highlighted in a matching color. d HOMER motif enrichment relative to background within each cluster is represented as a word cloud
