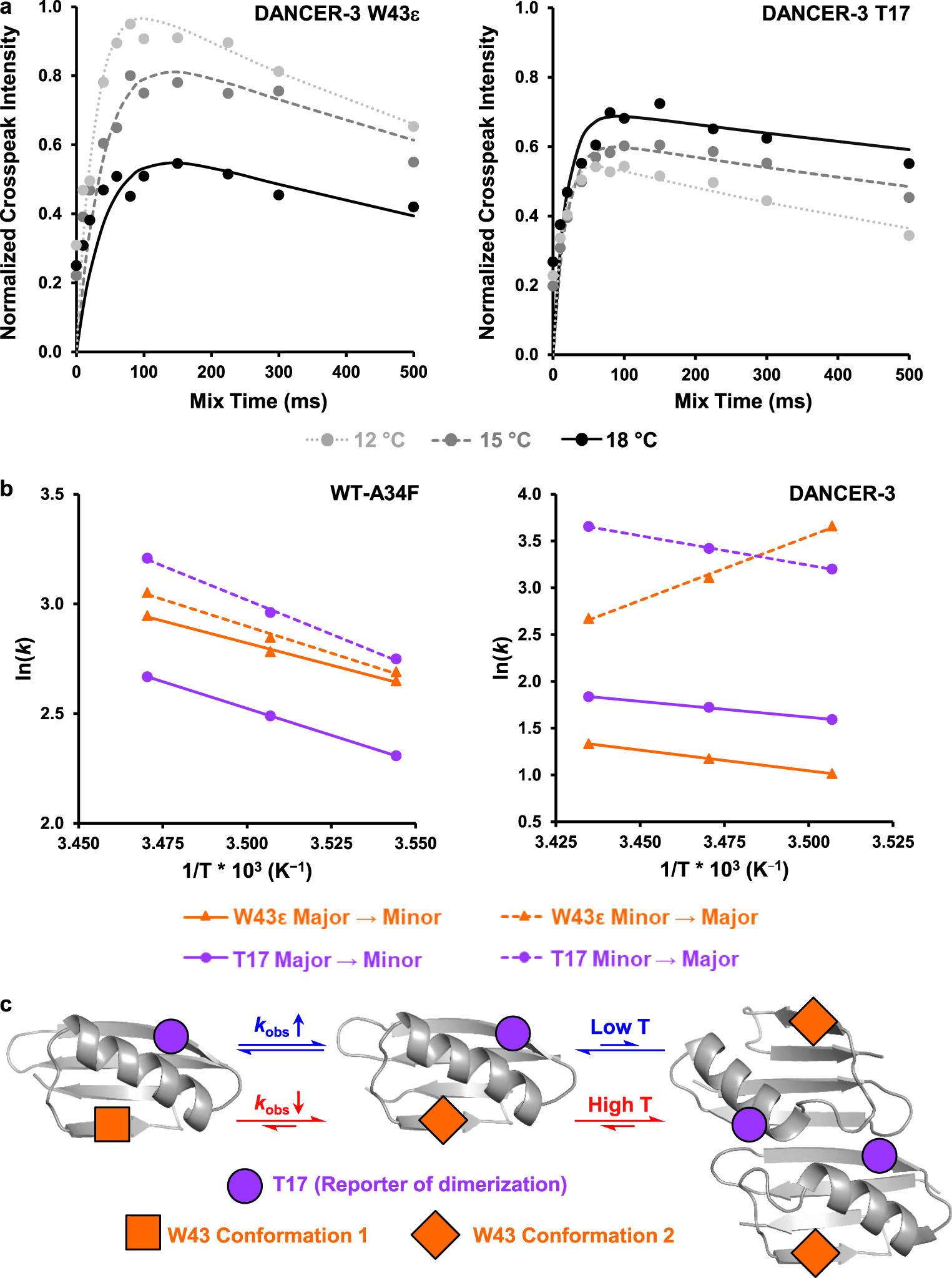

Fig. 2
From: Origin of conformational dynamics in a globular protein

Trp43 conformational exchange does not follow Arrhenius behavior in DANCERs. a 1H-15N HSQC ZZ-exchange crosspeak intensity curves for the W43ε minor to major state transition show that this transition slows in DANCER-3 as temperature increases. This unusual behavior is not observed with T17, demonstrating a different mode of exchange for W43ε than monomer-dimer exchange. b Arrhenius plots demonstrate Arrhenius behavior for both W43ε and T17 exchange profiles in WT-A34F, as demonstrated by similar slopes (i.e., activation energies) for all four transitions. DANCER-3 however exhibits non-Arrhenius behavior, as shown by a W43ε minor to major state transition with a non-physical negative activation energy, which indicates that this residue does not follow a two-state Arrhenius model. In contrast, a normal Arrhenius behavior is observed for DANCER-3 T17. c In DANCERs, non-Arrhenius behavior for W43ε transitions is observed due to an altered monomer-dimer equilibrium. As dimerization of DANCERs is favored at high temperature and W43 exchange is inhibited in the dimer, observed rates (kobs) of W43 exchange are reduced when temperature increases. In contrast, kobs for exchange of the T17 residue found at the dimer interface increase with temperature, indicating that dimerization kinetics follow Arrhenius behavior. Non-Arrhenius behavior for W43ε transitions was not detected in Gβ1 variants that do not undergo W43 conformational exchange, suggesting that all kinetics measured for these variants report only on dimerization.
