Fig. 2: Cas13b-independent interference of a CHIKV-luciferase reporter in insect cells. | Communications Biology

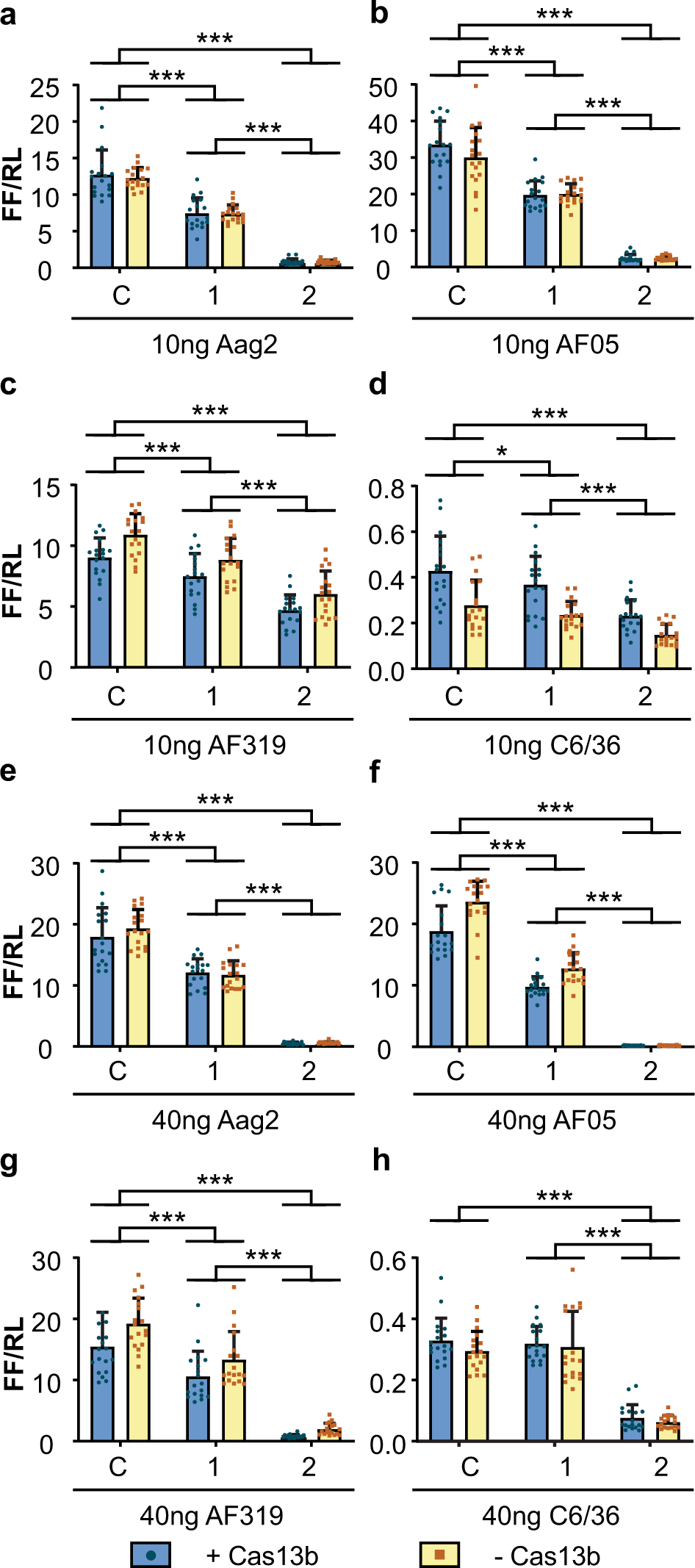

Fig. 2: Cas13b-independent interference of a CHIKV-luciferase reporter in insect cells.

From: Cas13b-dependent and Cas13b-independent RNA knockdown of viral sequences in mosquito cells following guide RNA expression

Fig. 2

Aag2 (a, e), AF05 (b, f), Dcr2 knockout AF319 (c, g) and C6/36 (d, h) cells were co-transfected with plasmid expressing Cas13b (+ Cas13b) or ZsGreen (− Cas13b) and in vitro-transcribed guides at 10 ng (a–d) or 40 ng (e–h) per well. Each bar represents the mean values of firefly luciferase activity normalised to the Renilla luciferase activity (FF/RL), the whiskers are the standard deviation from three independent transfections with six replicates each and each dot represents a replicate. Linear mixed model, except for h two-way ANOVA, as model could not be fitted. ***P < 0.001, *P < 0.05 (Supplementary Tables 4–7). C: non-targeting control guide (AmC3), 1: guide 1, 2: guide 2.
