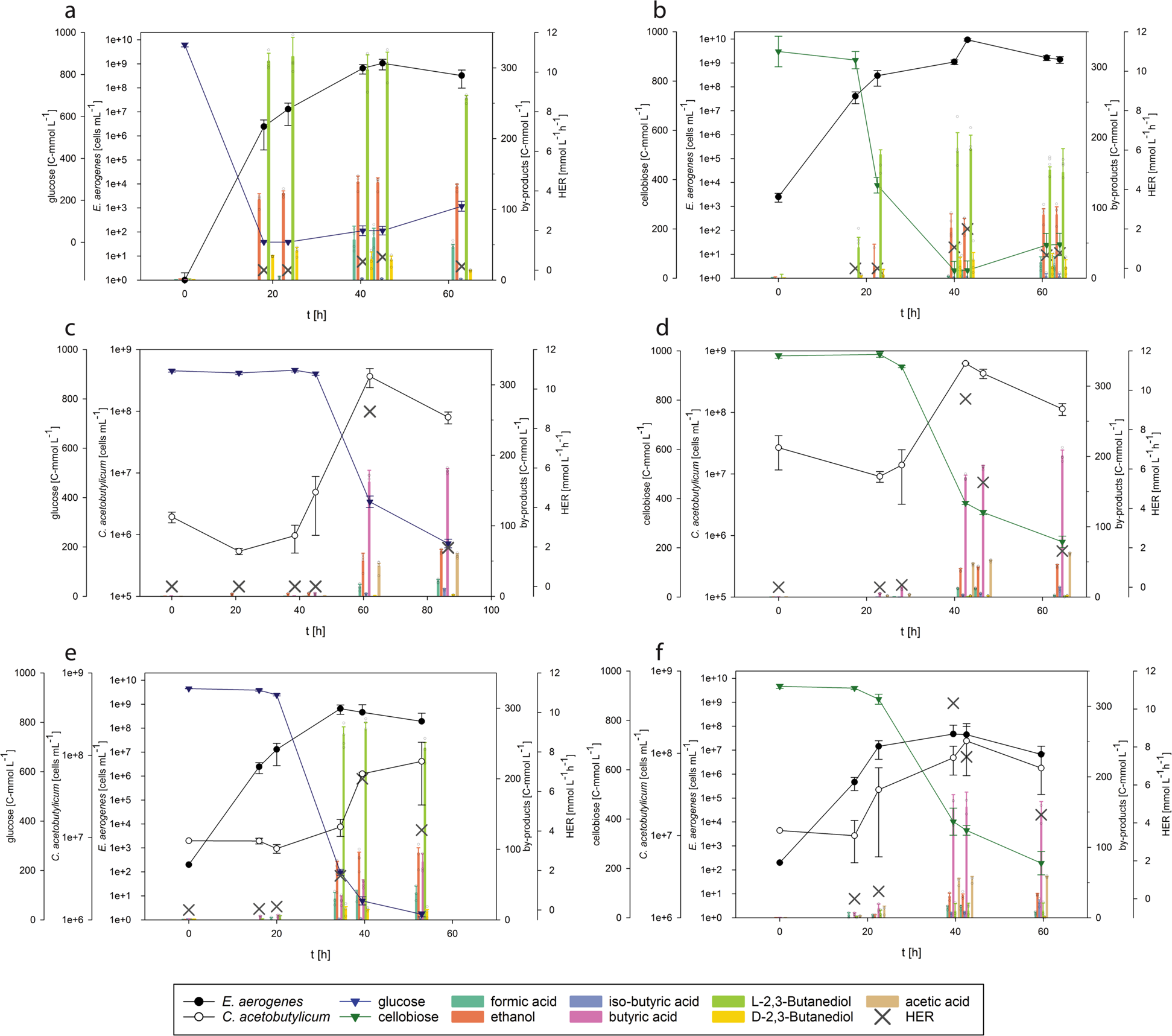

Fig. 3: Growth, substrate uptake and production kinetics of E. aerogenes, C. acetobutylicumand the engineered consortium on glucose and cellobiose.
From: Biohydrogen production beyond the Thauer limit by precision design of artificial microbial consortia
Growth, substrate uptake and production kinetics of E. aerogenes (a, b), C. acetobutylicum (c, d) and the consortium (with an inoculum ratio of 1:10,000 E. aerogenes: C. acetobutylicum) (e, f) on 999 C-mmol L−1 glucose and cellobiose (N = 3 and n = 4). The results indicate that the amount of produced byproduct was decreased and higher HER values were reached during the in consortium cultivation compared to mono-culture on glucose and cellobiose.
